Comfort, safety and standard compliance for modern sanitary solutions
Barrier-free toilet elements are a central component of contemporary sanitary concepts. They enable self-determined use of sanitary facilities for people with limited mobility and at the same time fulfil important requirements in terms of comfort, hygiene and safety.
Our systems impress with their sophisticated design, simple installation and reliable compliance with relevant standards and guidelines such as DIN 18040, creating the basis for barrier-free sanitary facilities that are both functional and future-proof. Thanks to their modular design, the WC elements can be flexibly integrated into different building projects and optimally adapted to individual requirements.
With the barrier-free WC elements from WERIT, you can rely on quality "Made in Germany", innovative technology and sustainable solutions for an inclusive sanitary infrastructure.
Discover our products

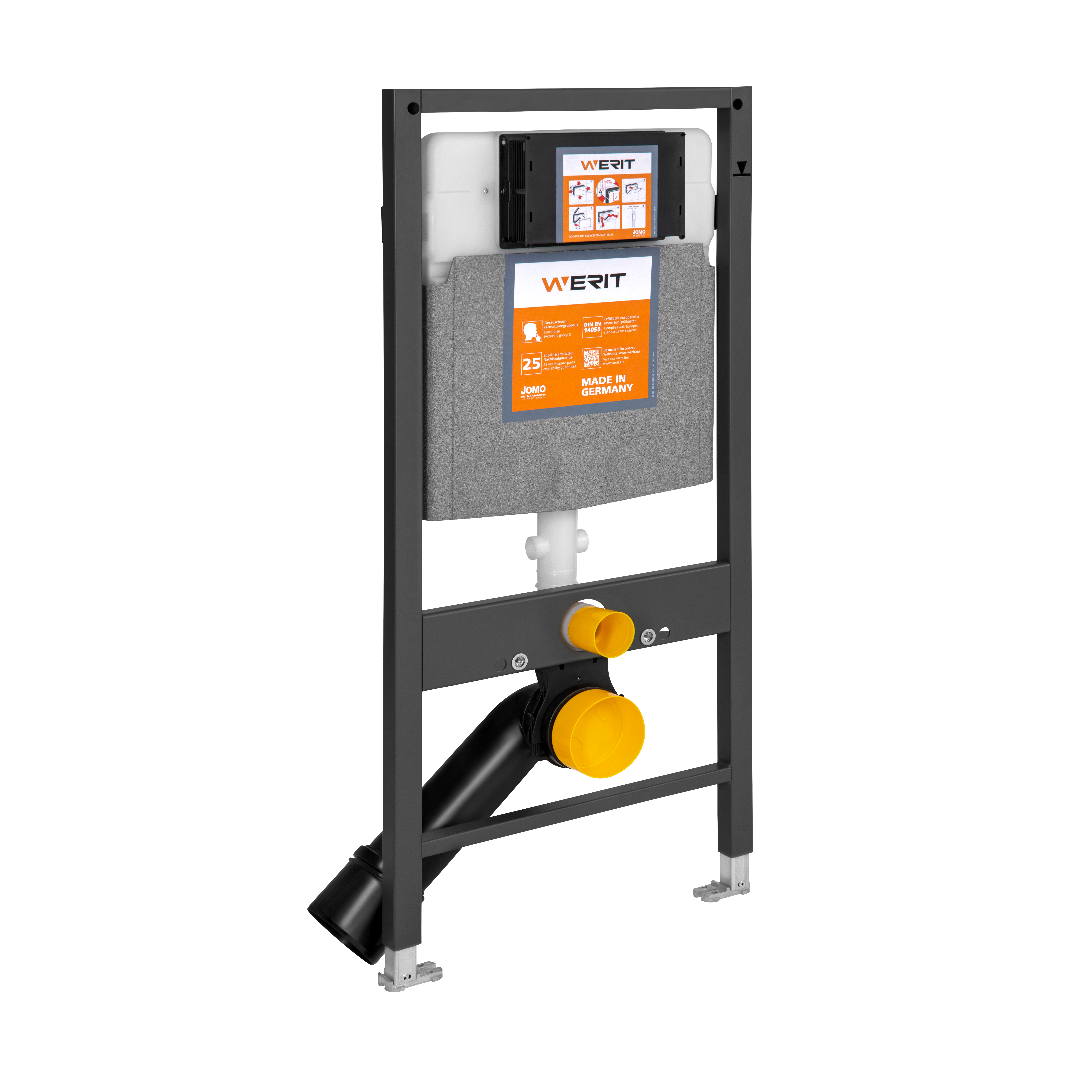

for wall-hung WC with wall-mounted cistern SLKplus
WERIfix WC element barrier-free
Art. no. 103-000000091
2-quantity flushing technology with actuation from the front
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall bracket
- Quick installation in UW profiles
- WERIfix SLK wall-mounted cistern with 25-year spare parts guarantee
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 135 mm
Properties:
- Raised bolt holder 380 mm for WC ceramics
- Statically self-supporting, powder-coated mounting frame
- PE drain elbow DN 90/90, 295 mm long incl. PP reducer
DN 90/110, depth position adjustable without tools - WC connection set DN 90 for wall-hung WC
- Ceramic fixing M12 Torx T30 incl. screw-in aid, fixing distance 180 mm or 230 mm
- With foot supports, 200 mm height-adjustable for floor installation (RFB-FFB)
- Foot supports made of corrosion-resistant material
WERIfix - SLK wall-mounted cistern
- 2-flush technology
- Insulated against condensation
- Water connection at the back or top for WERIT ball shut-off valve
- Wall feed-through with WERIT ball shut-off valve
- Cistern tested according to DIN EN 14055
- Building protection for service opening can be cut to length - protects against dirt
and moisture
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
- Flush flow restrictor
Matching flush plates
- Crossbar for shortened ceramics

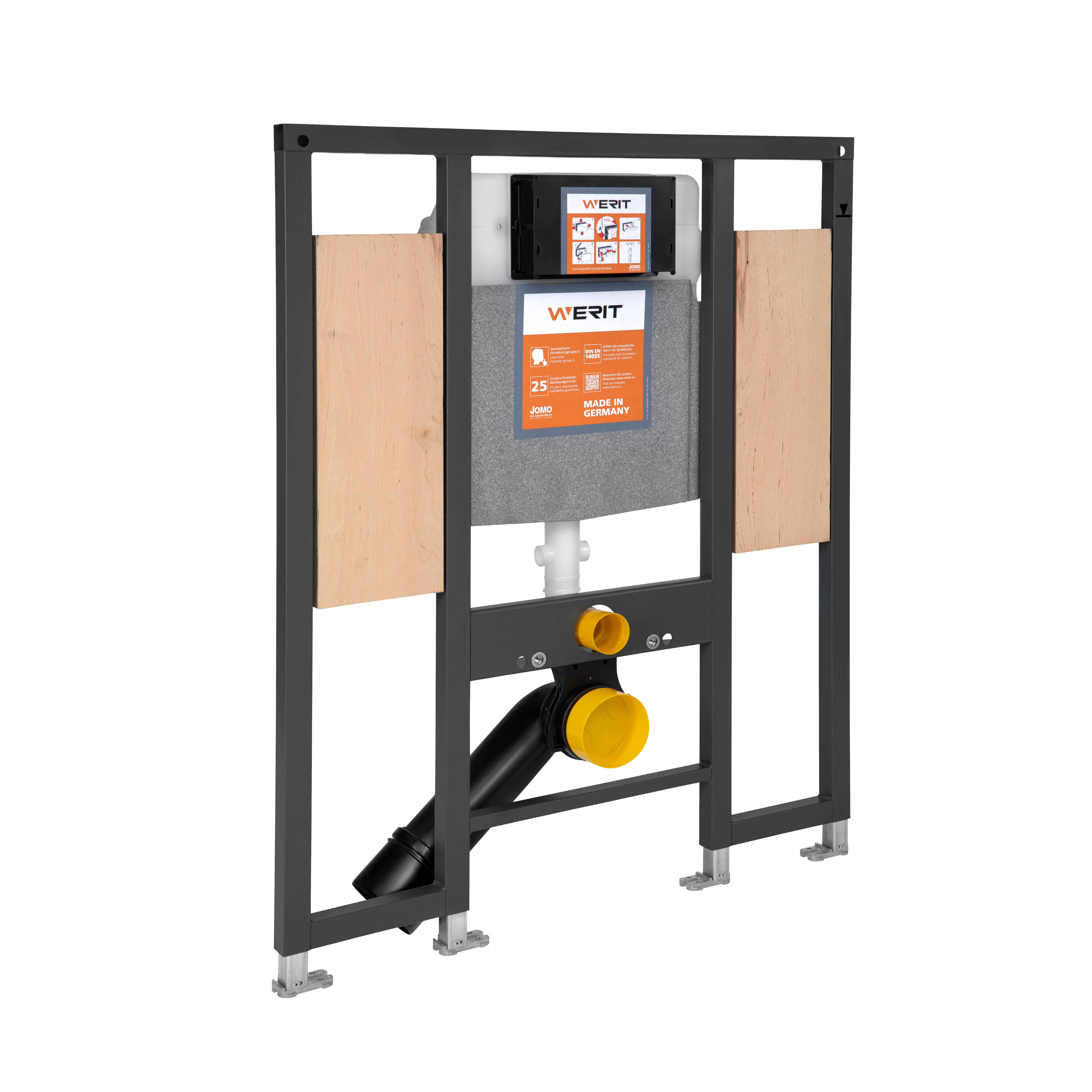

with two waterproof glued veneer wood panels for support and grab handles
WERIfix WC element barrier-free
Art. no. 103-000000092
Quick installation thanks to one-time alignment
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall brackets
- Quick installation in UW profiles
- WERIfix SLK wall-mounted cistern with 25-year spare parts guarantee
- Height:
- 1120 mm
- Width:
- 880 mm
- Depth:
- 165 mm
Properties:
- Raised bolt holder 380mm for WC ceramics
- Incl. two waterproof glued veneer wood panels
- Statically self-supporting, powder-coated mounting frame
- PE drain elbow DN 90/90, 295 mm long incl. PP reducer DN 90/110, depth position adjustable without tools
- WC connection set DN 90 for wall-hung WC
- Ceramic fixing M12 Torx T30 incl. screw-in aid, fixing distance 180 mm or 230 mm
- With foot supports, 200 mm height-adjustable for floor installation (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete installation and fixing material for WC ceramics
- Lasered metre mark
- TÜV tested
WERIfix - SLK wall-mounted cistern
- 2-flush technology
- Insulated against condensation
- Water connection at the back or top for WERIT ball shut-off valve
- Wall feed-through with WERIT ball shut-off valve
- Cistern tested according to DIN EN 14055
- Building protection for service opening can be cut to length - protects against dirt and moisture
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
- Flush flow restrictor
Matching flush plates
- Crossbar for shortened ceramics

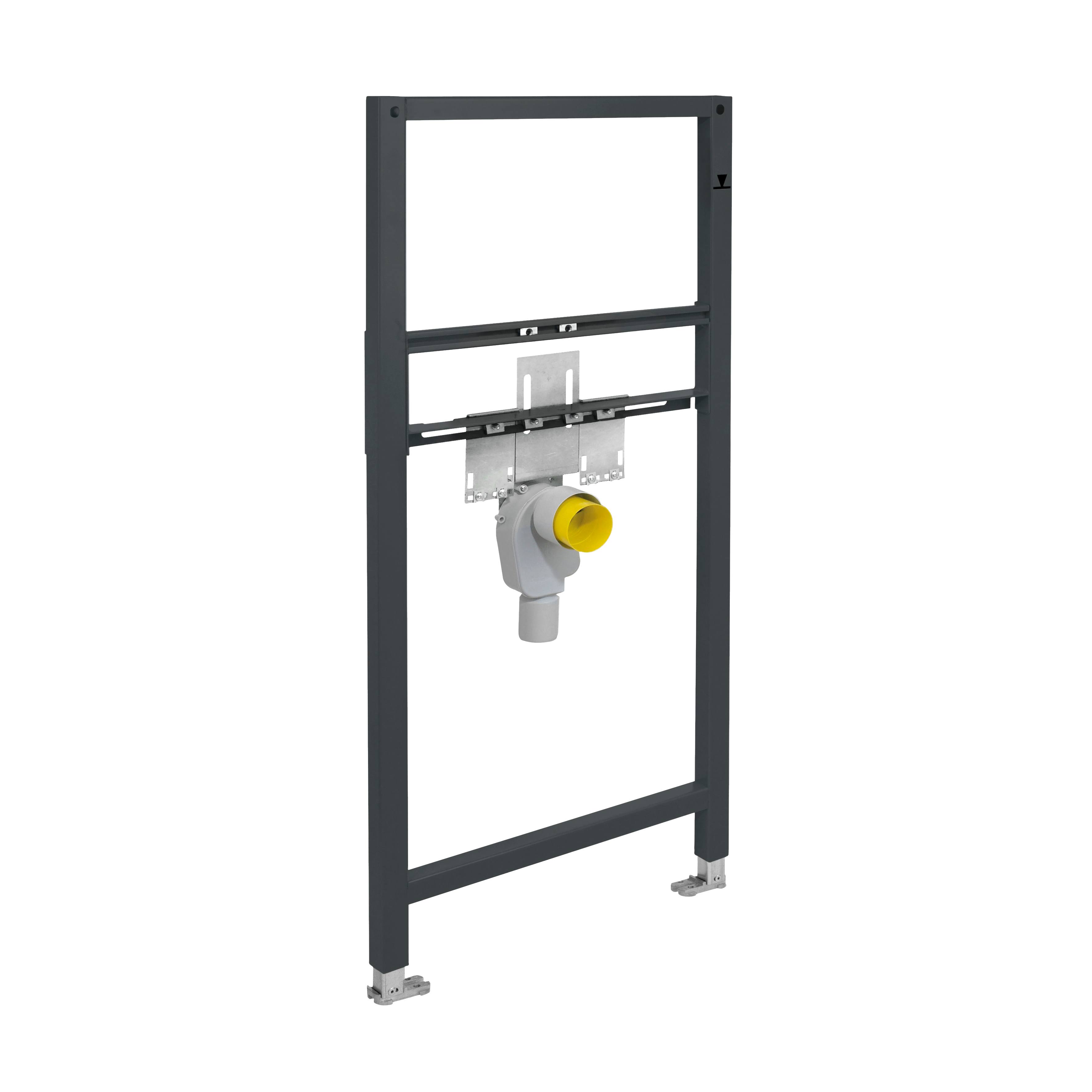

for single-hole fitting
WERIfix washbasin element barrier-free
Art. no. 104-000000012
With pre-assembled UP odour trap
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall bracket
- Quick installation in UW profiles
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 90 mm
Properties:
- Statically self-supporting, powder-coated mounting frame
- Mounting plates for wall discs/connection boxes
- All crossbars can be moved
- Pre-assembled concealed odour trap (Dallmer wall-mounted trap 300 to DIN 19541)
- Without cover/without siphon connection bend
- Ceramic fixing M8, fixing distance 150 mm to 300 mm
- With foot supports, 200 mm height-adjustable for floor installation (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete installation and fixing material for WC ceramics
- Lasered metre mark
- TÜV tested
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
Matching flush plates
- Crossbar for shortened ceramics
- Connection elbow 320 PC CR 1 1/4" x
DN 32 Item no. 116-000000412 - Connection elbow 320, chrome-plated with immersion pipe, 1 1/4" x DN 32
Item no. 116-000000413
Customising
the right solution for every situationAll of the following items are customising items.
The basic element of the items is the WERIfix base mounting frame, but with the modifications listed.

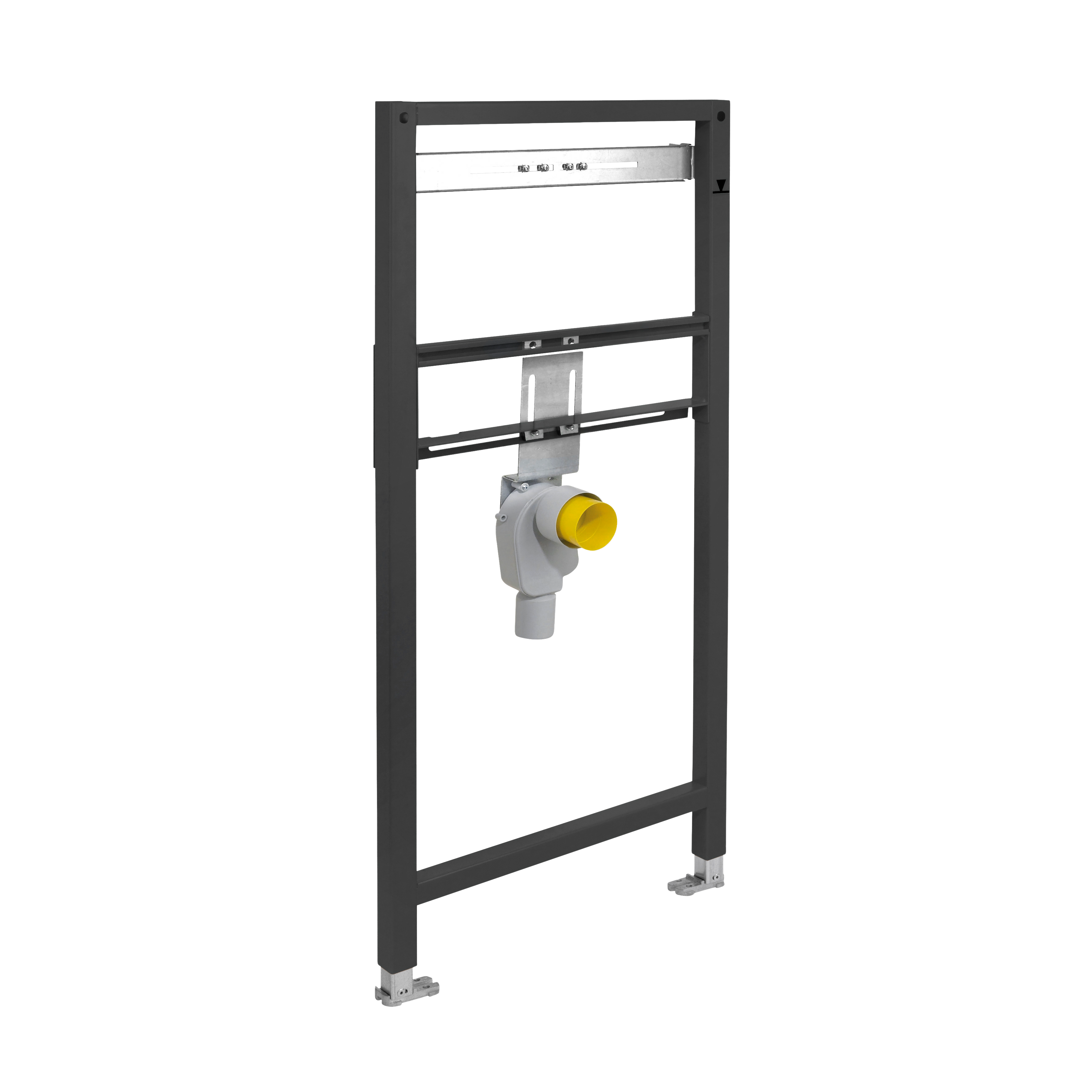

Washbasin element, barrier-free for wall-mounted tap
Art. no. 104-000000002
- With pre-assembled flush-mounted odour trap
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

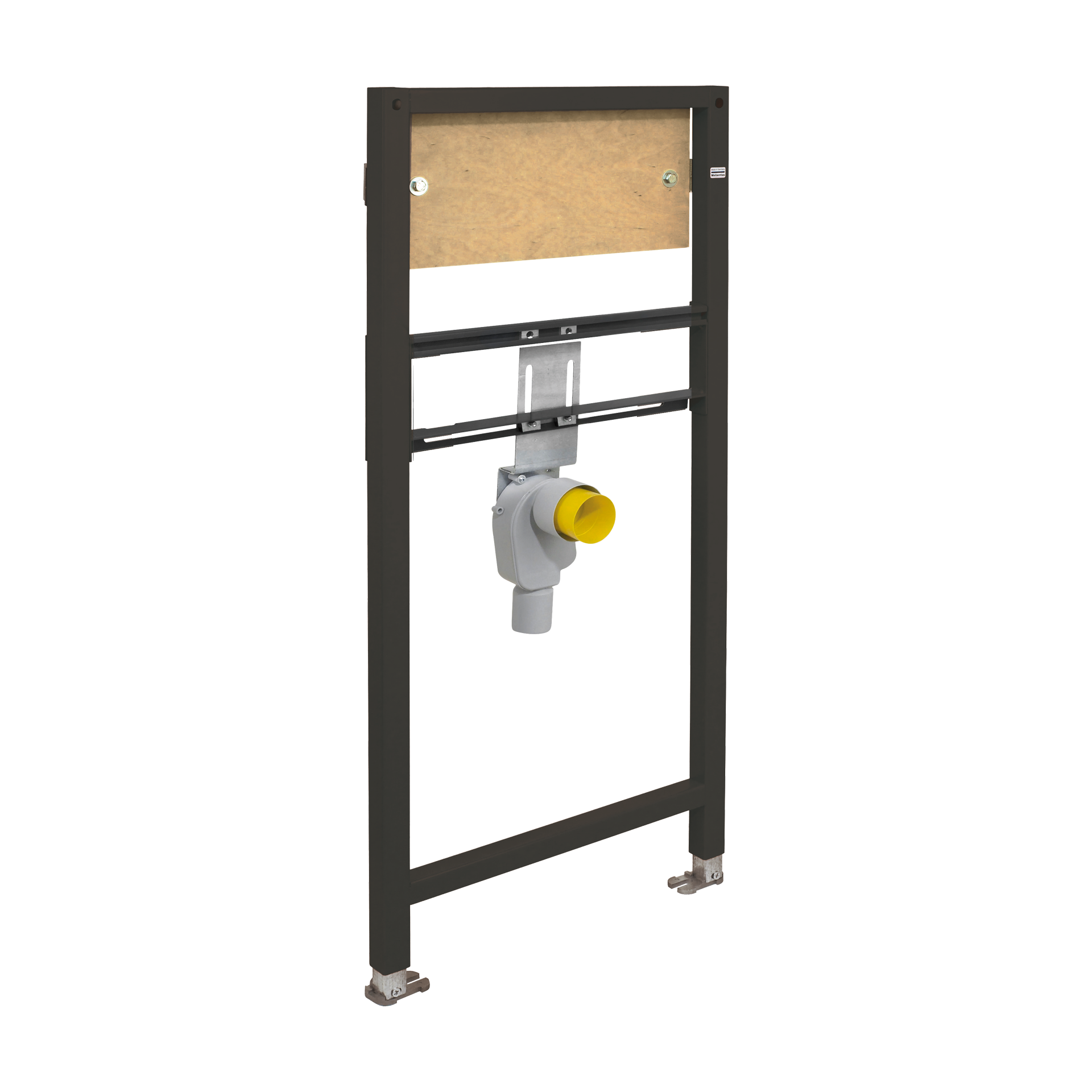

Washbasin element, barrier-free for concealed mixer tap/electronics
Art. no. 104-000000003
- With pre-assembled UP odour trap
- Incl. waterproof glued veneer wood panel
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

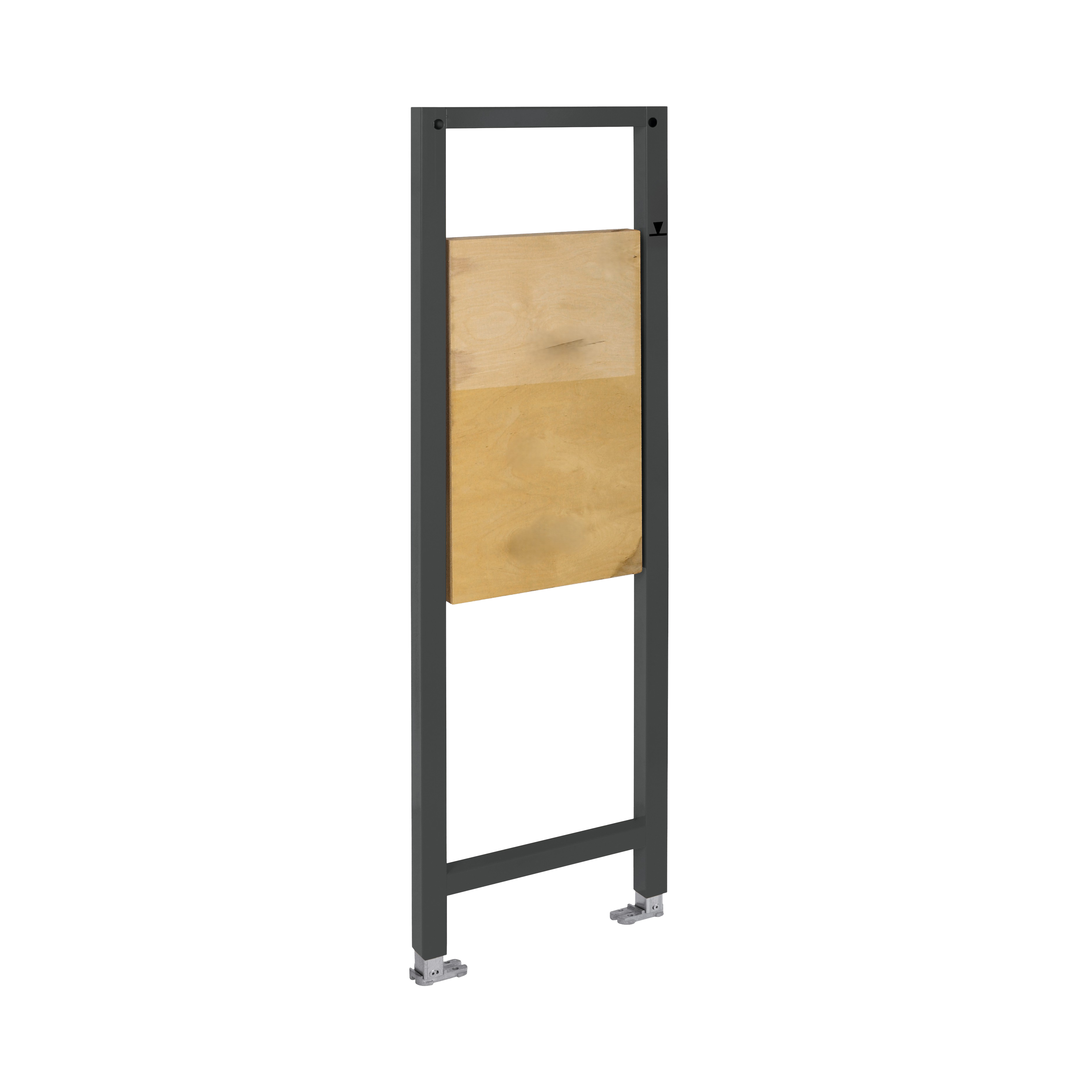

Element for support and grab rails
Art. no. 107-000000028
- for commercially available support and grab rails
- Incl. waterproof glued veneer wood panel
- Height:
- 1120 mm
- Width:
- 365 mm
- Depth:
- 50 mm
