For perfect hygiene and safe pre-wall installations
The urinal elements for concealed urinal flush valves in the WERIfix installation system offer a flexible and reliable solution for modern sanitary installations. They are suitable for both manual and touchless urinal flush systems and enable safe, standard-compliant pre-wall installation in new builds and renovations.
The WERIfix mounting frame for urinals impresses with its statically self-supporting design, high stability and easy-to-install design. Quick and efficient installation is guaranteed thanks to the pre-assembled shell construction kit, integrated pre-shut-off and sophisticated connection components.
Height-adjustable foot supports, sound-insulated connection solutions and universal compatibility with commercially available urinal ceramics make the system ideal for use in public buildings, commercial properties and high-quality sanitary facilities.
Discover our products
With body kit for infrared and manual actuation

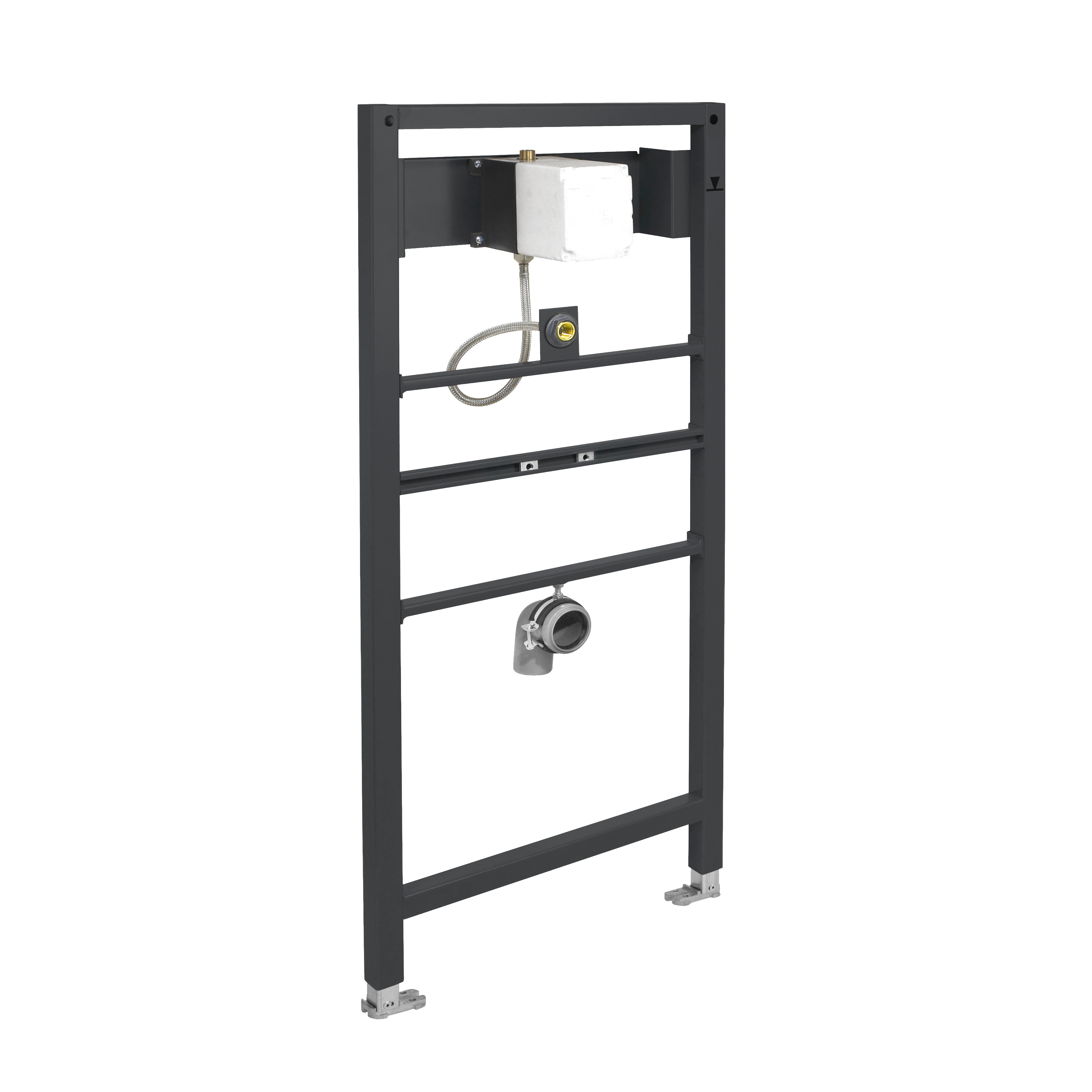

WERIfix urinal element
Art. no. 106-000000017
For the EXCLUSIVE built-in flush valve
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or wooden stud walls
- Corner installation using wall brackets
- Quick installation in UW profiles
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 120 mm
Properties:
- Statically self-supporting, powder-coated mounting frame
- Pre-assembled plastic pipework kit
- Pre-blocking
- Flushing plug
- Polystyrene building protection
- Pre-installed, non-detachable connection between pipework set and inlet
- Incl. urinal connections Drain bend DN 50 with sound-insulated pipe clamp
- Urinal inlet connection 1/2"
- For all commercially available drainage and urinal bowls with concealed inlet/outlet
- With foot supports, 200 mm height-adjustable for floor installation (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete installation and fixing material for urinal ceramics
- Lasered metre mark
- TÜV tested
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
Customising
the right solution for every situation
All of the following items are customising items.
The basic element of the items is the WERIfix base mounting frame, but with the modifications listed.

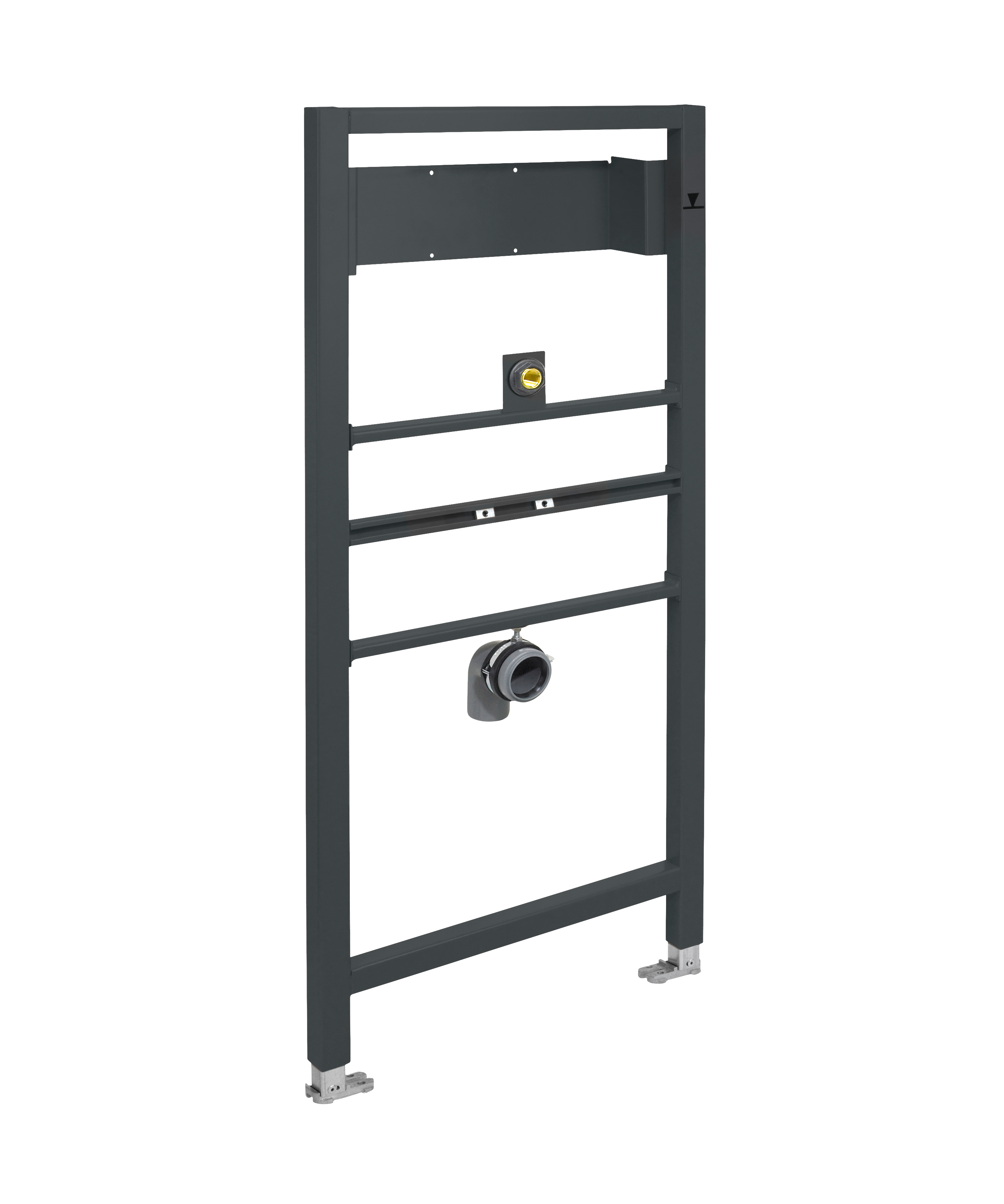

Urinal element for concealed urinal flush valve
Art. no. 106-000000020
- For standard urinals
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

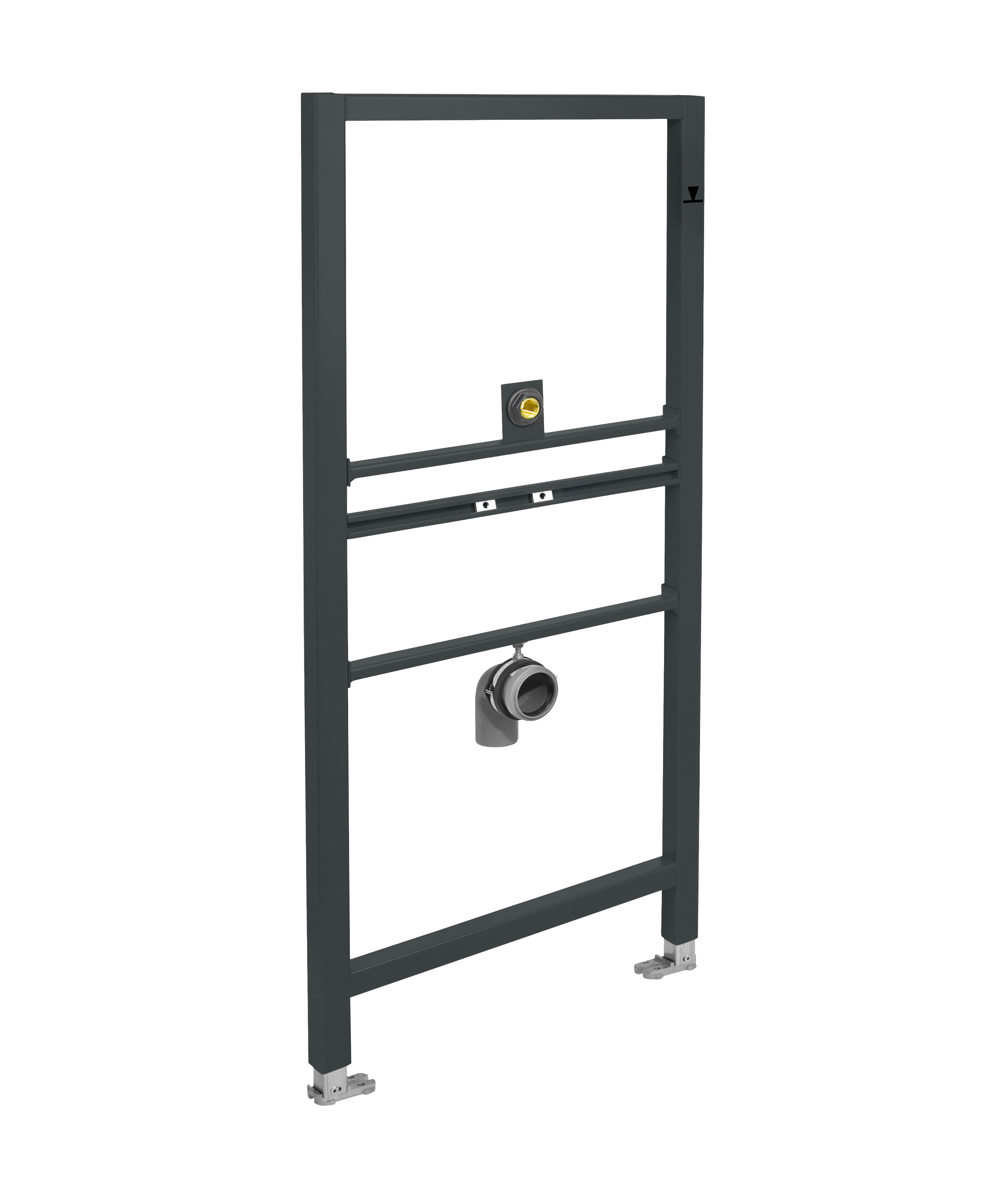

Urinal element for wall-mounted urinal flush valve
Art. no. 106-000000018
- For standard urinals with a flush valve
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

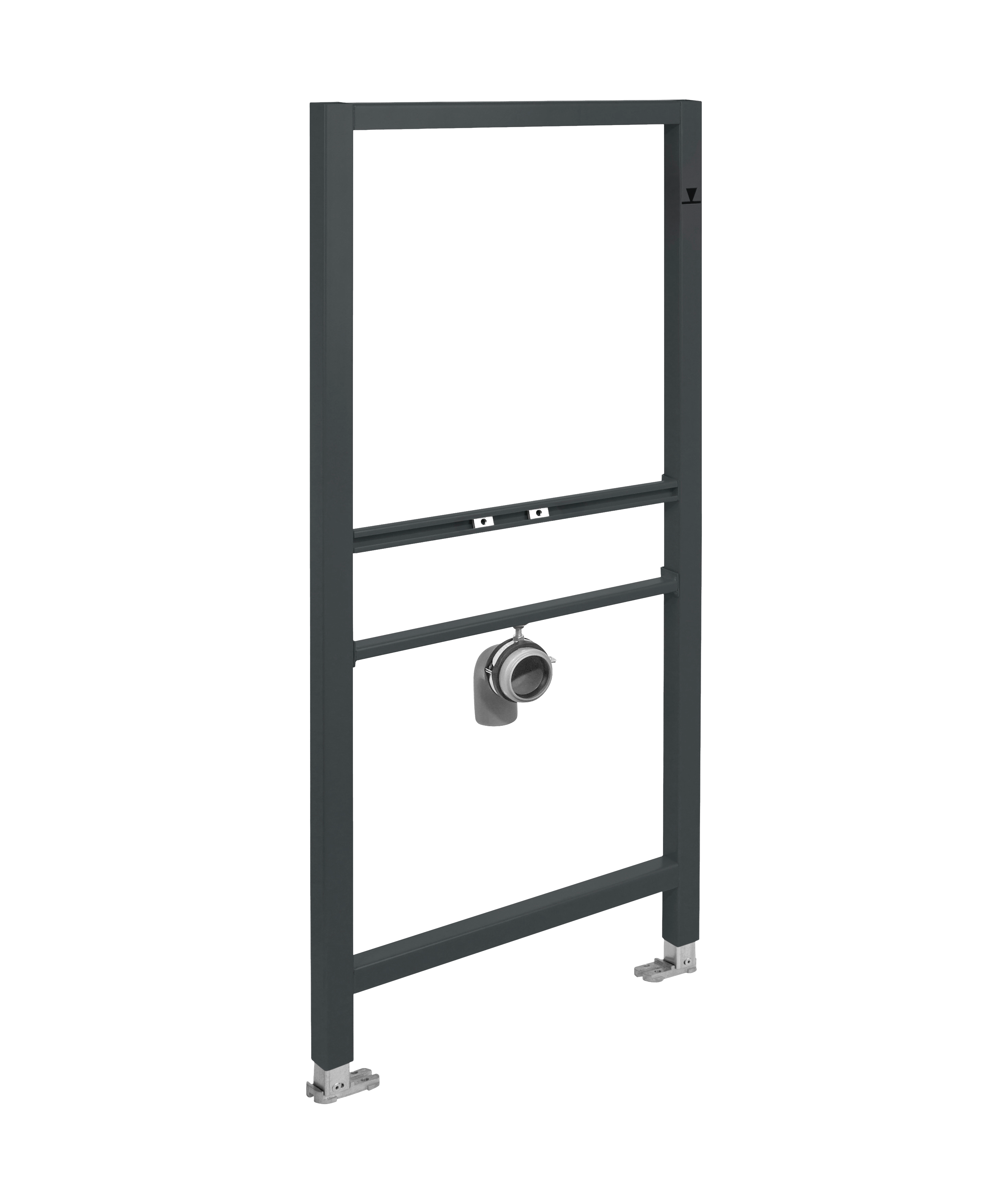

Urinal element for waterless urinal bowls
Art. no. 106-000000019
- No water connection required
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

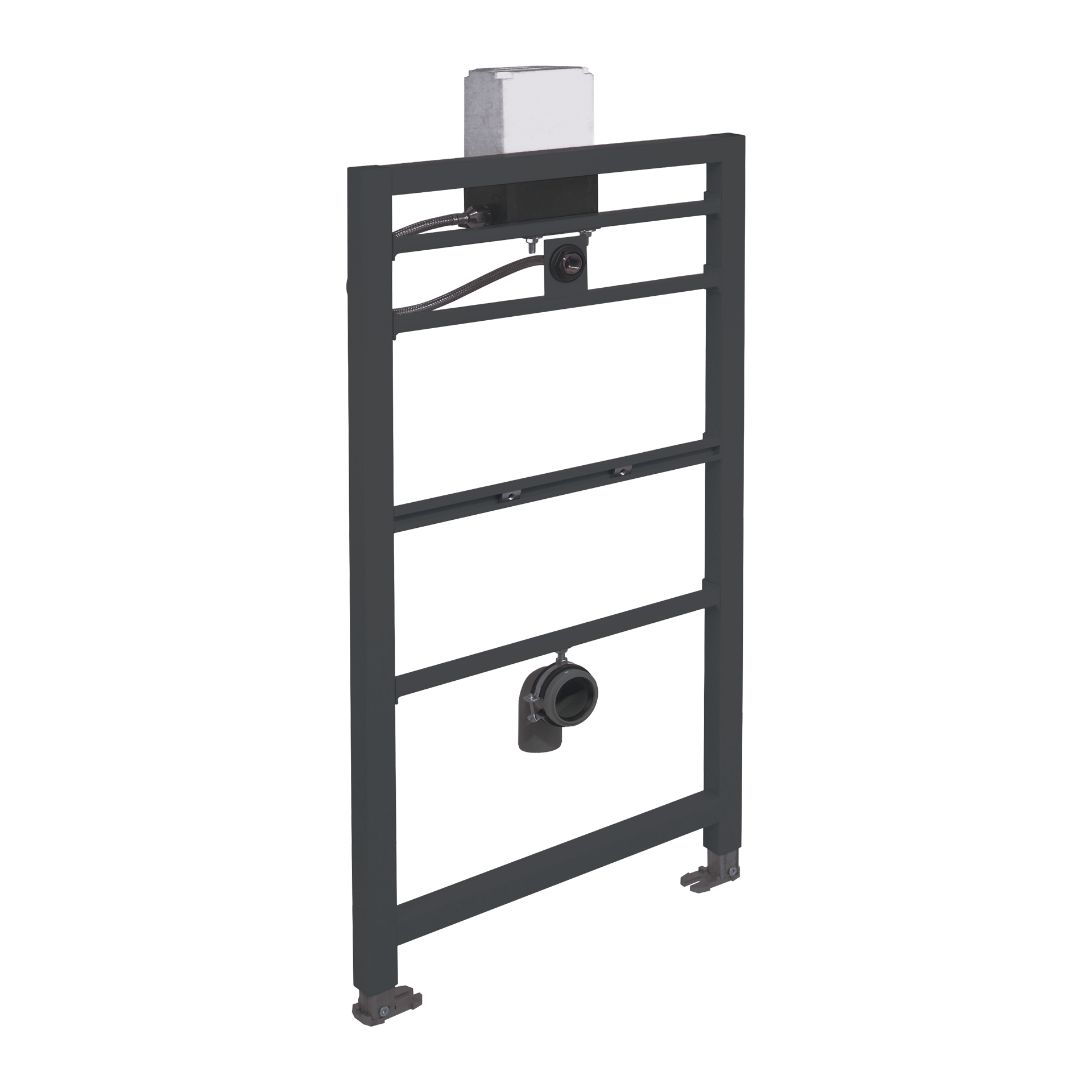

Urinal element for actuation from above
Art. no. 106-000000014
- Includes installation kit
- For EXCLUSIVE flush valves
- For manual operation
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 140 mm
