The basis for precise washbasin installations
The individual washbasin elements with WERIfix mounting frame offer a reliable and flexible solution for modern sanitary installations in new builds and renovations. Thanks to their stable, self-supporting design, they enable washbasins to be installed securely in a wide variety of structural situations.
The WERIfix mounting frame impresses with its high stability, tested quality (TÜV-tested) and a particularly easy-to-install design. Thanks to movable crossbars, height-adjustable foot supports and universal connection options, the system can be optimally customised to individual requirements.
The combination of mounting frames for washbasins, sophisticated technology and durable materials ensures efficient, standard-compliant and sound-insulated installation. This makes the WERIfix individual washbasin elements ideal for use in residential, commercial and public sanitary facilities.
Discover our products
for standard washbasins

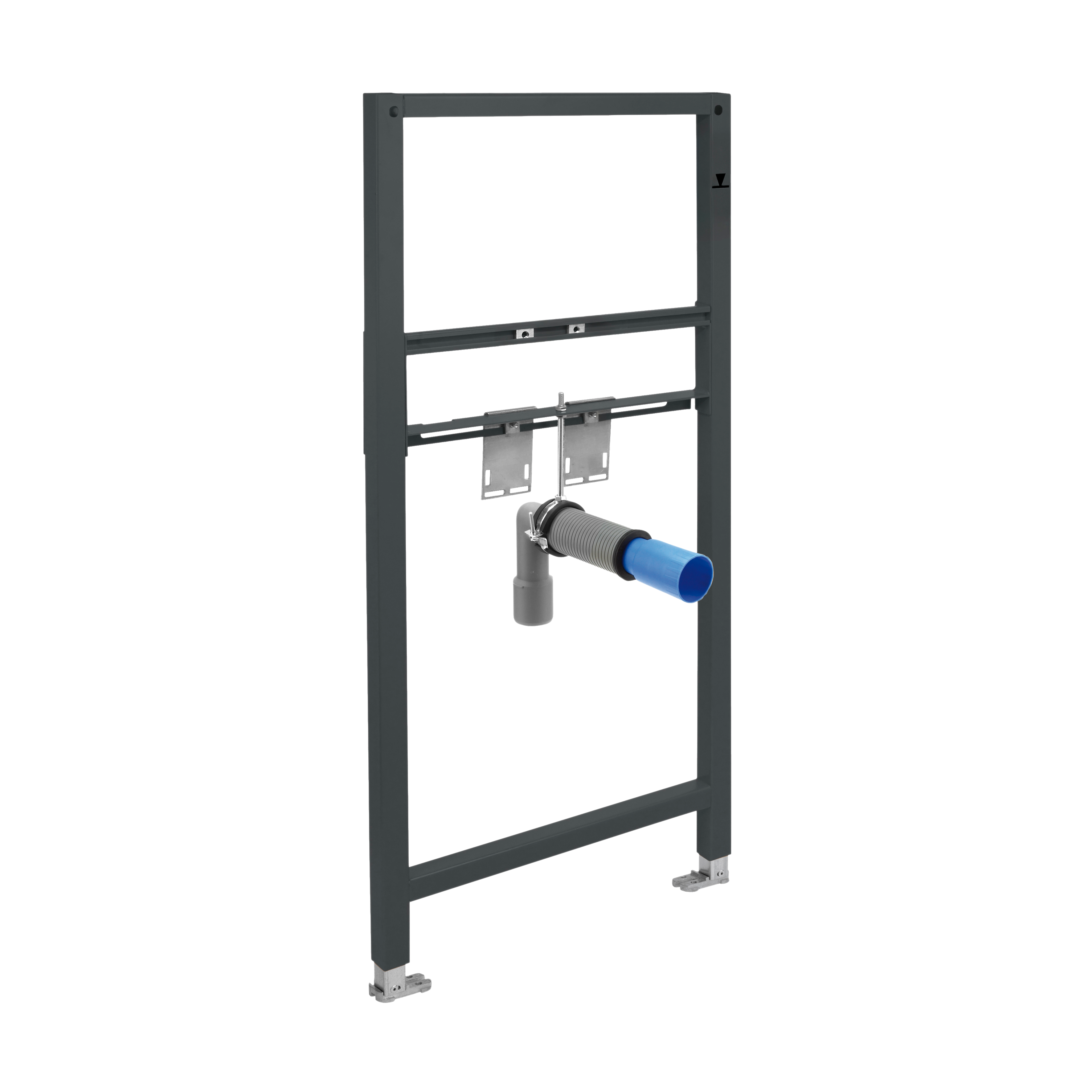

WERIfix washbasin element
Art. no. 104-000000030
For single-hole tap
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall bracket
- Quick installation in UW profiles
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 90 mm
Properties:
- Statically self-supporting, powder-coated mounting frame
- Mounting plates for wall discs/connection boxes
- All crossbars can be moved
- Extended drain bend DN 50/40; 80x180 mm
- Sound-insulated pipe clamp
- Rubber sleeve 32 mm
- Ceramic fixing M8, fixing distance 80 mm to 150 mm
- With foot supports, 200 mm height-adjustable for floor construction (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete installation and fixing material for WC ceramics
- Lasered metre mark
- TÜV tested
Optional accessories
- WERIfi x multi wall bracket for hanging in C-rails
- WERIfi x Sound insulation set for wall and floor mounting
- WERIfi x Special foot supports for use on floors with underfloor heating
Customisation
the right solution for every situationAll of the following items are made to order.
The basic component of these items is the WERIfix Base mounting frame, but with the modifications listed.

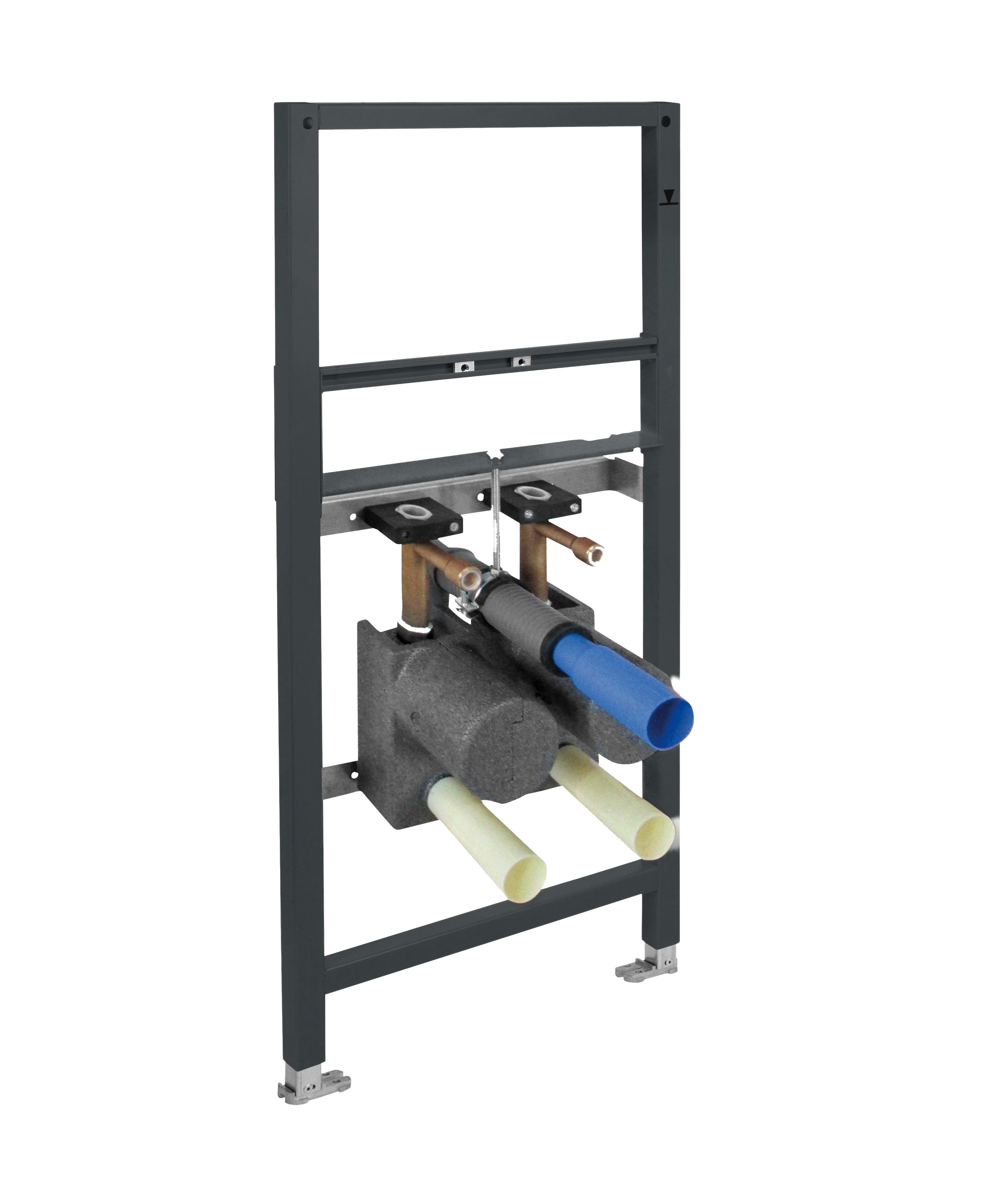

Washbasin element with integrated counter section
Art. no. 104-000000025
- 2 DN20 (3/4") UP fittings combination (gunmetal) and extension for angle valve (1/2")
- 2 insulating shells for UP valve and water meter
- Sound-insulated brackets for UP combination
- Protective caps for UP valve
- Universal measuring capsule KOAX G2 thread
- Completely pre-assembled and pressure-tested
- Flush-mounted combination distance min. 120 mm/150 mm max. 200 mm
- Connection elbow DN 50 with protective cap and rubber nipple Height-adjustable and sound-insulated
- All traverses can be moved
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 135 mm

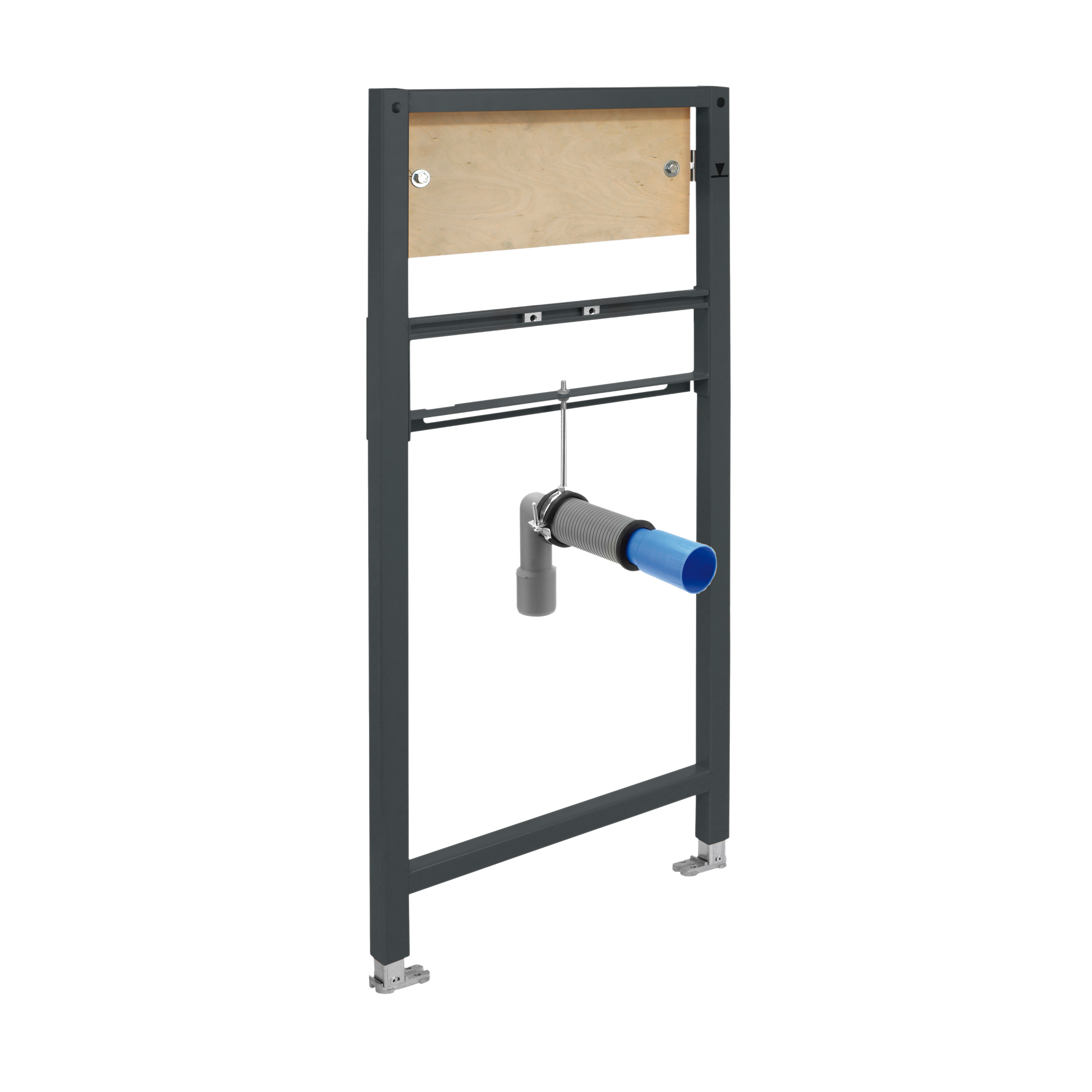

Washbasin element for concealed wall-mounted tap
Art. no. 104-000000033
- Waterproof glued veneer wood panel for mounting fittings
- All crossbars (also with wooden panel) can be moved
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 135 mm

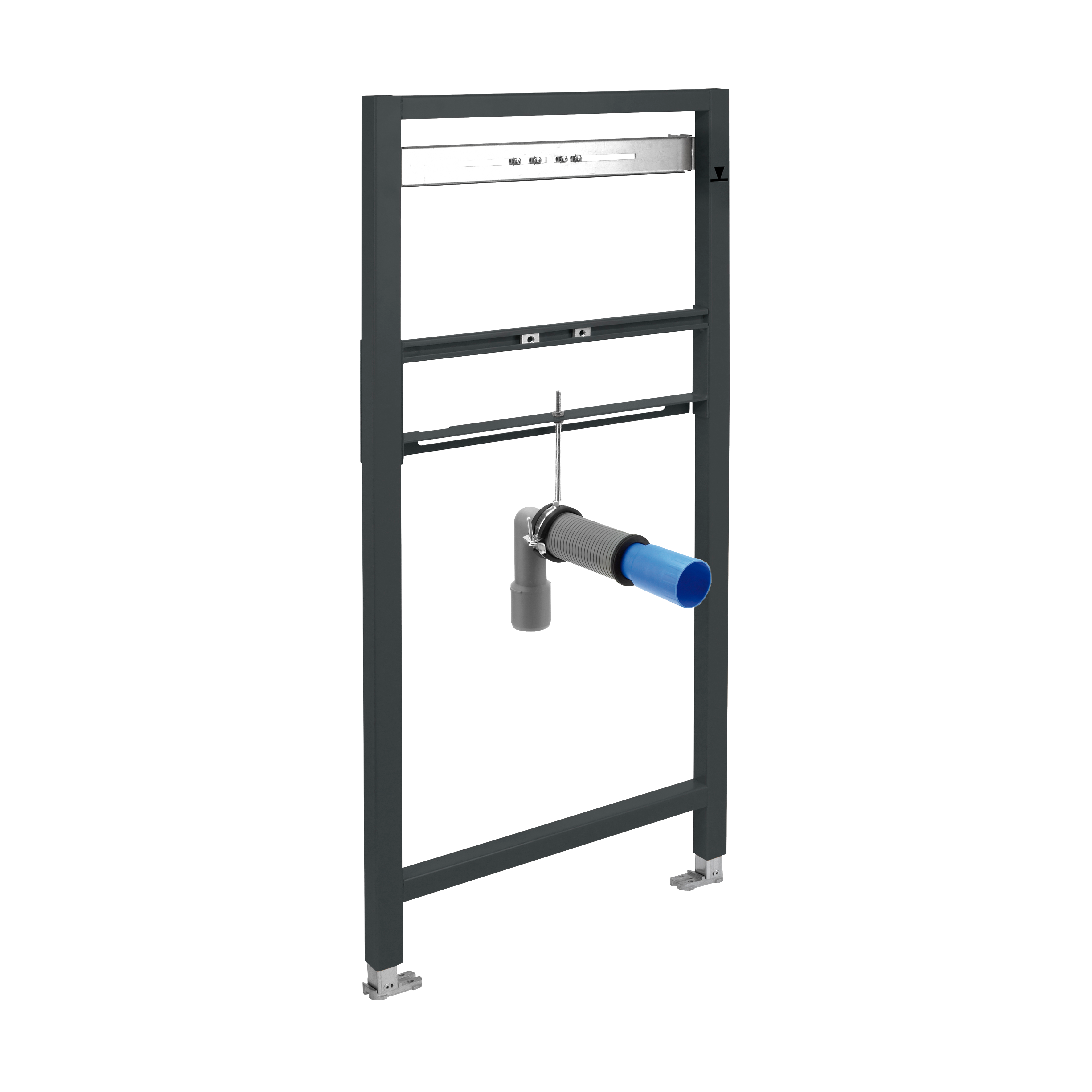

Washbasin element for concealed wall-mounted tap
Art. no. 104-000000032
- Mounting plate for wall disc/connection boxes
- Mounting plate depth-adjustable for inlet pipe from above
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 90 mm

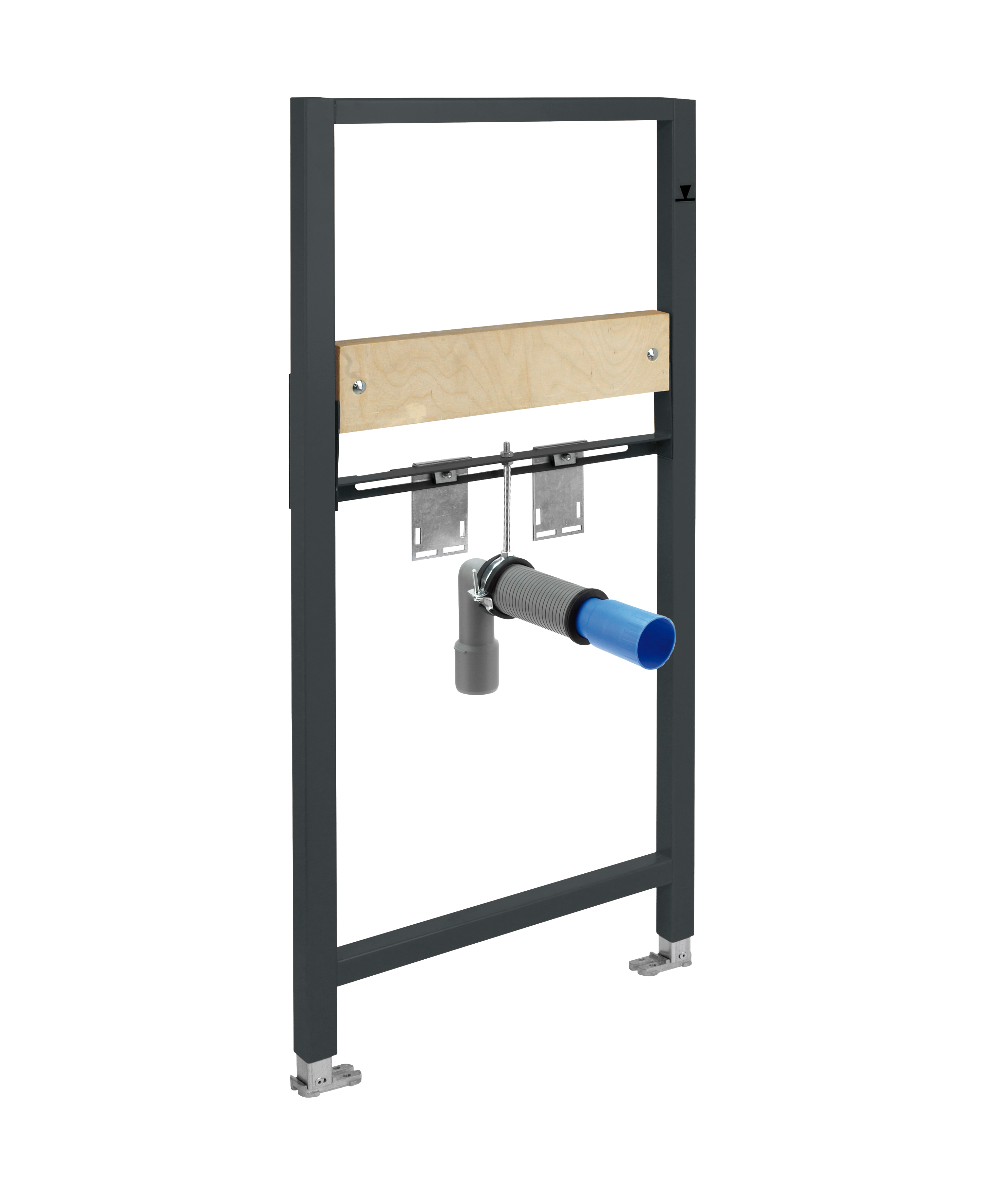

Washbasin element for single-hole tap
Art. no. 104-000000005
- Sliding traverse with wooden panel
- Waterproof glued veneer wood panel for washbasin attachment
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 90 mm

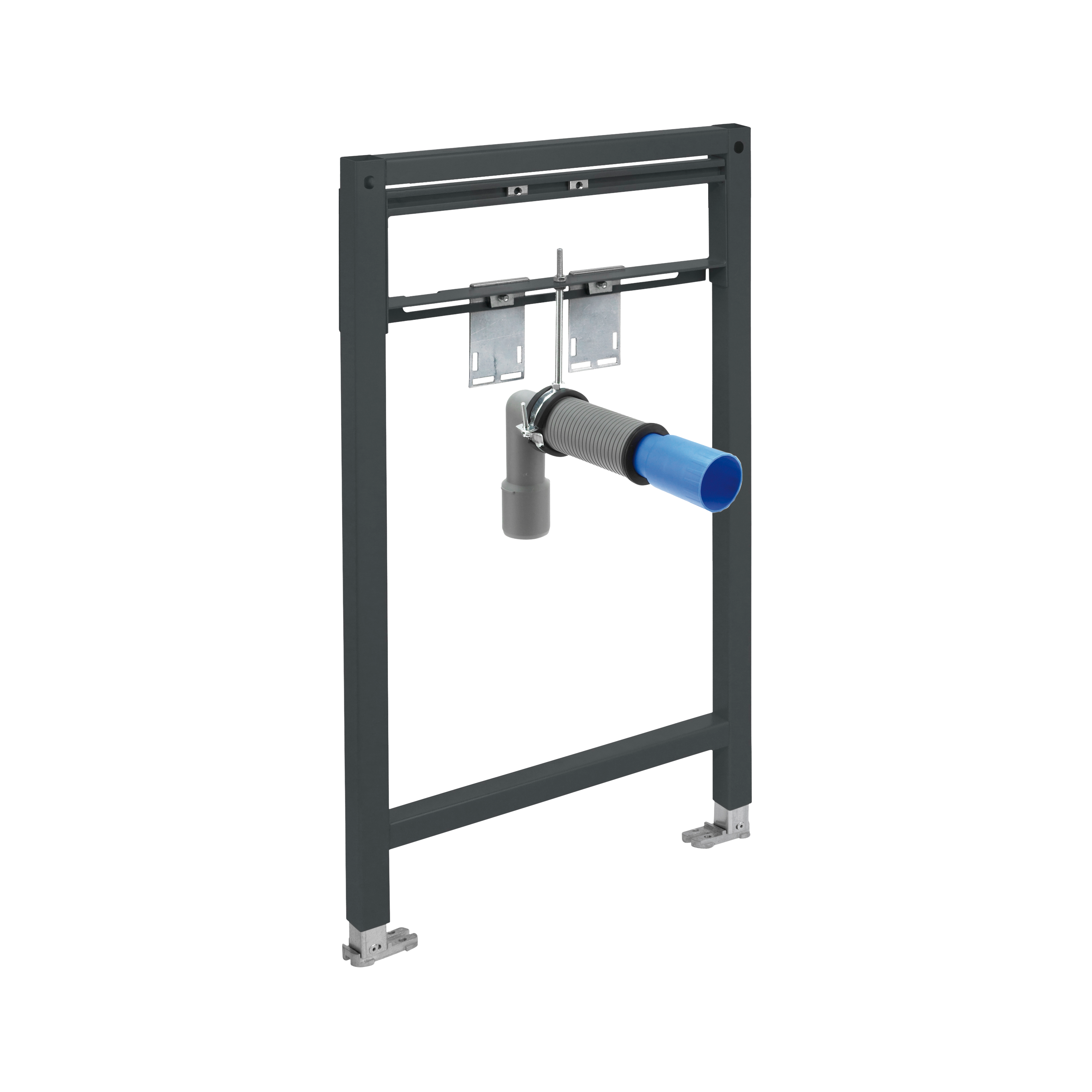

Washbasin element for single-hole tap
Art. no. 104-000000031
- Variable height using the footrests
- Footrests 330 mm height-adjustable
- Height:
- 850-980 mm
- Width:
- 500 mm
- Depth:
- 90 mm
