WERIT pre-wall system
Mounting frames are versatile supplementary elements in the WERIT pre-wall system and are used wherever flexible and stable fixing solutions are required. They form the basis for the secure installation of various sanitary and equipment items and expand the system portfolio with customised solutions for special installation situations.
The mounting frames from WERIT are characterised by their robust design, high load-bearing capacity and simple integration into existing pre-wall installations. They enable quick and precise installation of a wide range of elements and help to organise construction processes efficiently.
Whether in new builds, renovations or special applications - the flexible installation frames can be optimally adapted to project-specific requirements and therefore offer maximum planning security for architects, planners and installers. They are a useful addition to the WERIT pre-wall system and provide reliable solutions for a wide range of applications.
Discover our products
for surface-mounted fitting

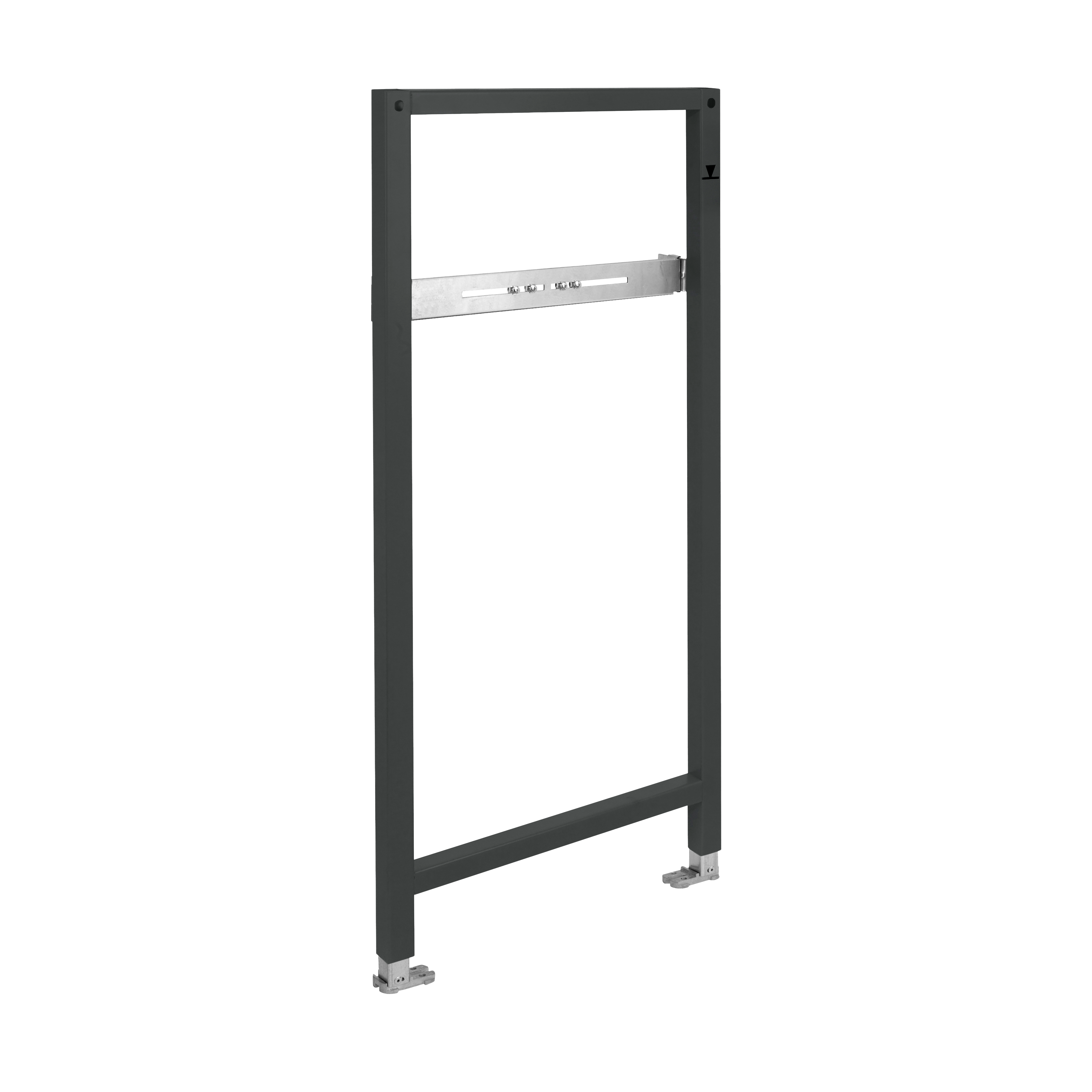

WERIfix element for shower/bathtub
Art. no. 107-000000012
With mounting plate for wall plates / junction boxes
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall bracket
- Quick installation in UW profiles
Features:
WERIfix mounting frame
- Statically self-supporting, powder-coated mounting frame
- Mounting plates for wall discs/junction boxes
- All crossbars can be moved
- With foot supports, 200 mm height-adjustable for floor construction (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete installation and fastening material for ceramic washbasins
- Lasered metre mark
- TÜV tested
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
for standard commercial sinks

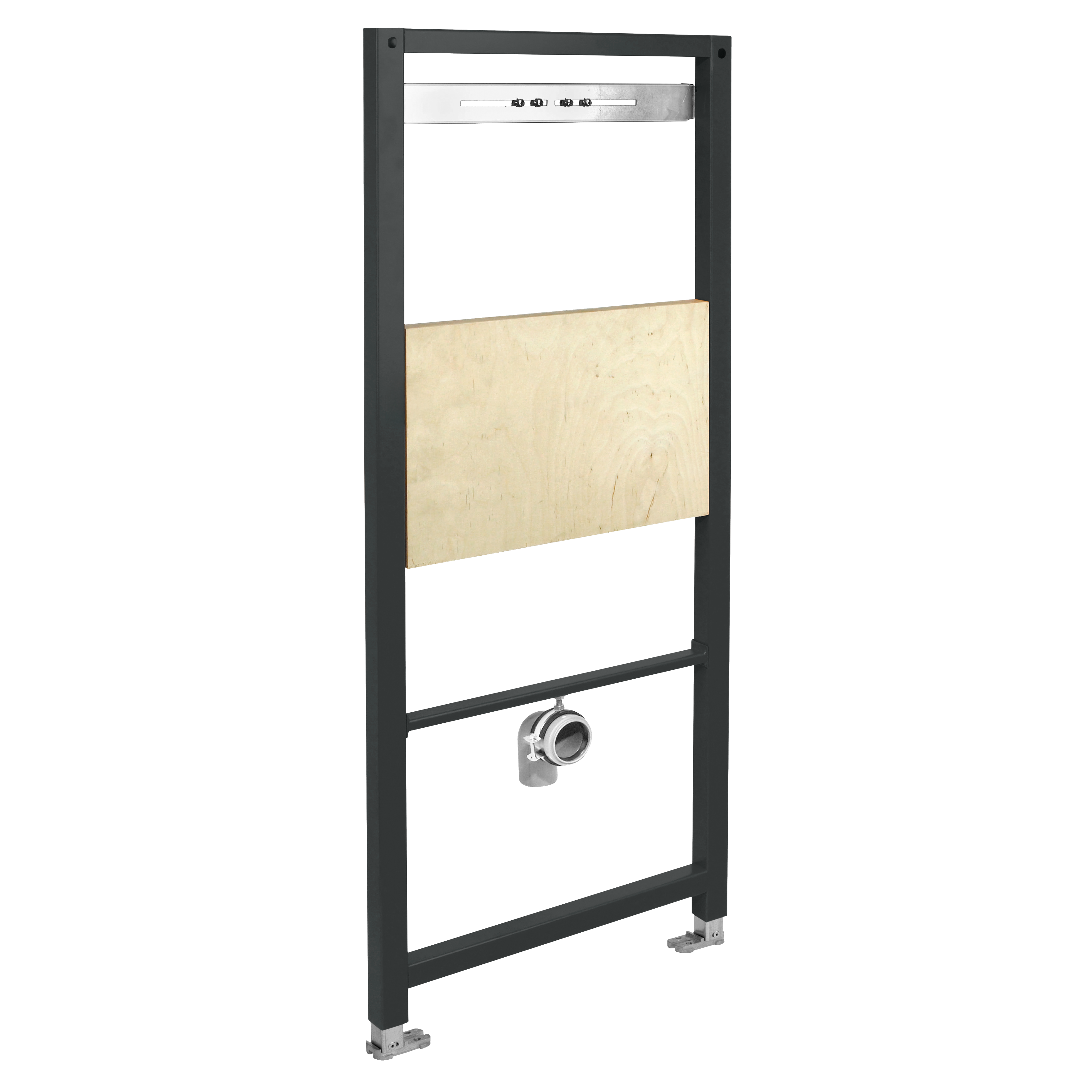

WERIfix sink
Art. no. 107-000000009
With mounting plate for wall plates / junction boxes
Intended use:
- Pre-wall installation in front of solid or lightweight walls
- In-wall installation for installation in lightweight or timber stud walls
- Corner installation using wall bracket
- Quick installation in UW profiles
Features:
WERIfix mounting frame
- Statically self-supporting, powder-coated mounting frame
- Mounting plates for wall discs/connection boxes
- All crossbars incl. wooden plate can be moved
- Drainage elbow DN 50
- Sound-insulated pipe clamp
- Wooden panel made of waterproof glued veneer wood panel
- With foot supports, 200 mm height-adjustable for floor construction (RFB-FFB)
- Foot supports made of corrosion-resistant material
- Incl. complete assembly and fastening material for ceramic sinks
- Lasered metre mark
- TÜV tested
- Height:
- 1300 mm
- Width:
- 500 mm
- Depth:
- 100 mm
Optional accessories
- WERIfix multi wall bracket for hanging in C-rails
- WERIfix sound insulation set for wall and floor mounting
- WERIfix special foot supports for use on floors with underfloor heating
Customising
the right solution for every situationAll of the following items are customising items.
The basic element of the items is theWERIfix base mounting frame, but with the modifications listed.

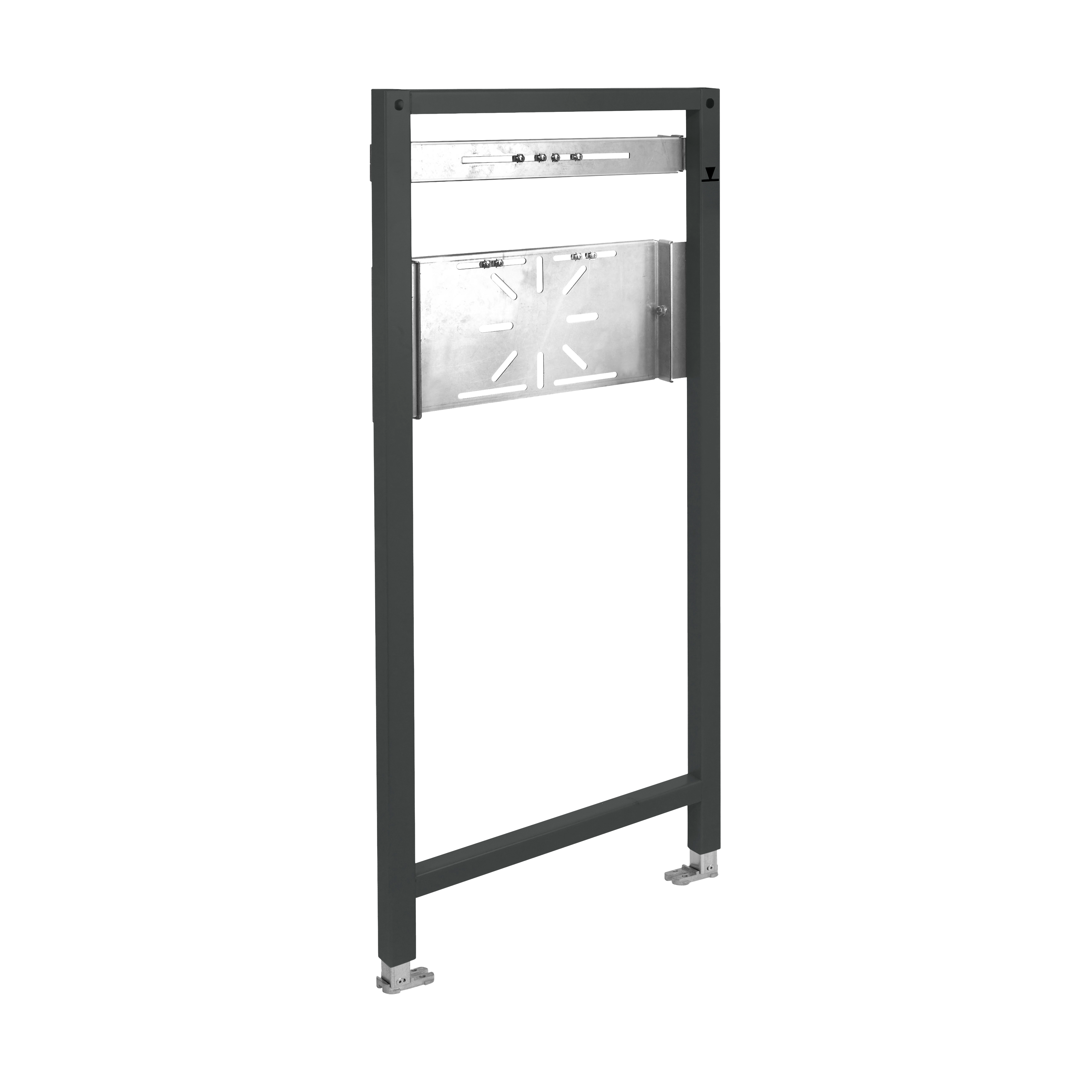

Element for shower/bathtub for concealed fitting
Art. no. 107-000000013
- For hand connection elbow for hand shower
- Height:
- 1120-1300 mm
- Width:
- 500 mm
- Depth:
- 100 mm

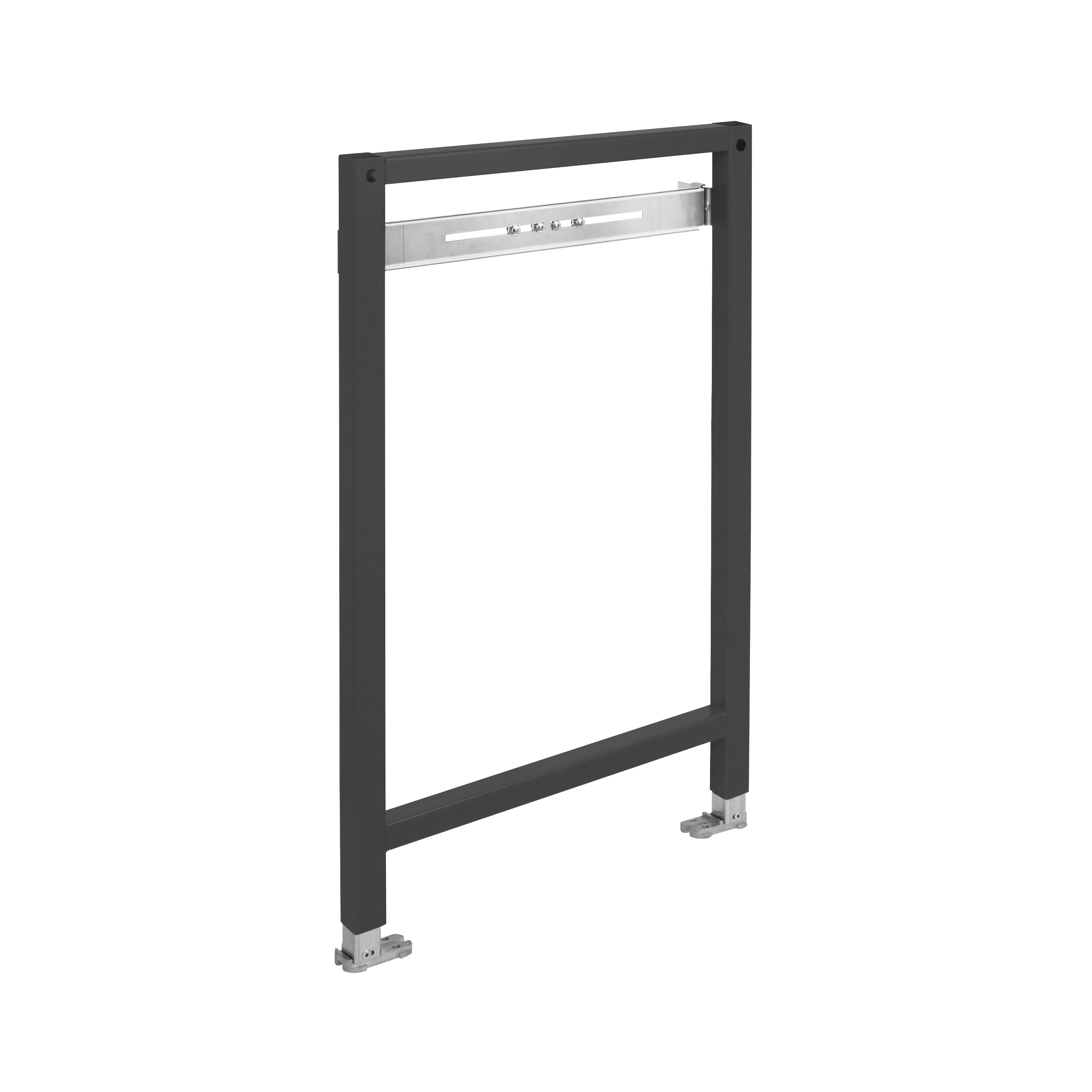

Element for bathtub for surface-mounted fitting
Art. no. 107-000000024
- With mounting plate for wall discs/junction boxes
- 330 mm height-adjustable for floor mounting (RFB-FFB)
- Height:
- 820-890 mm
- Width:
- 500 mm
- Depth:
- 100 mm
Element for bathtub for concealed fitting
- With mounting plate for wall discs/junction boxes
- 330 mm height-adjustable for floor mounting (RFB-FFB)
- Height:
- 820-890 mm
- Width:
- 500 mm
- Depth:
- 100 mm

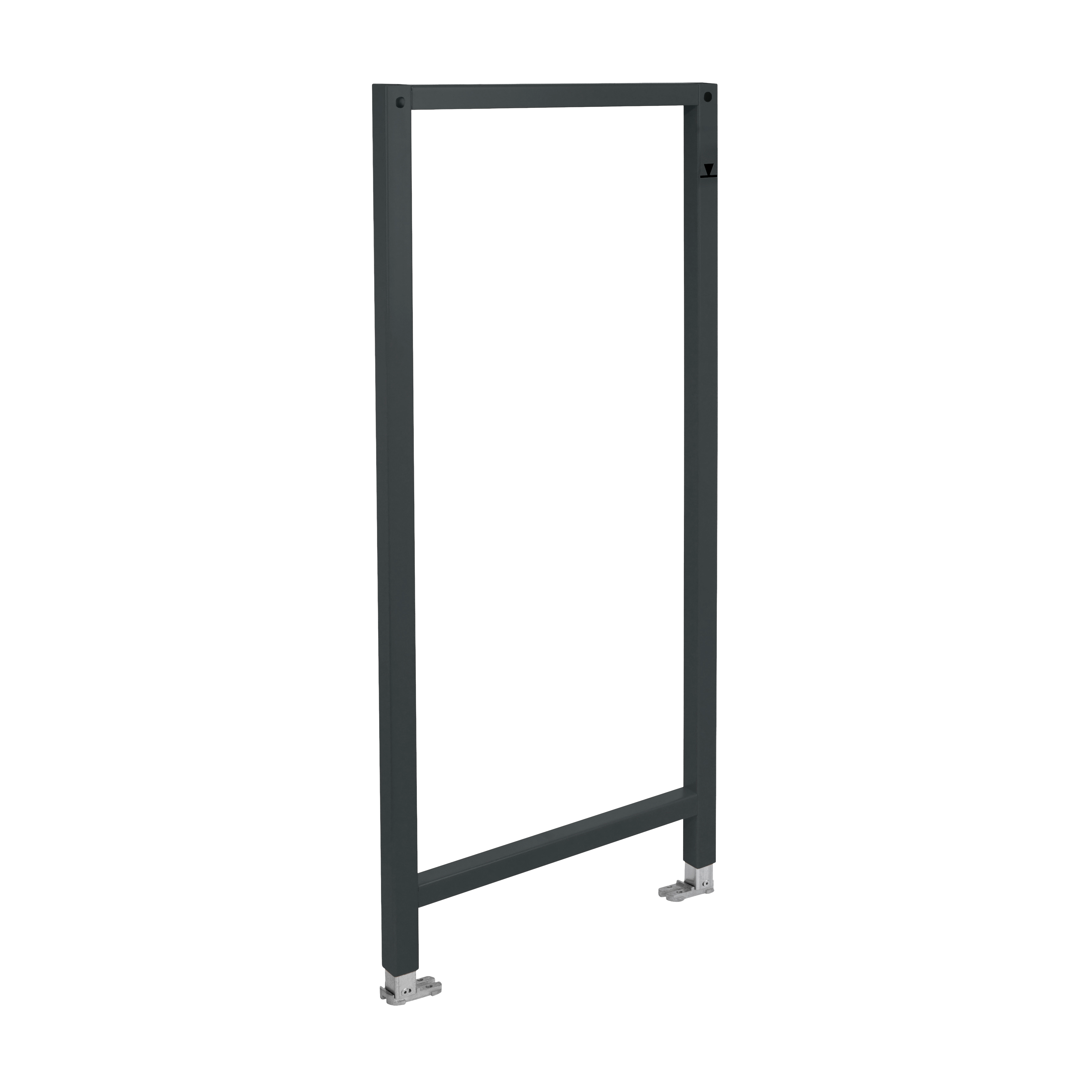

Element for bridging empty spaces over 600 mm
Art. no. 107-000000015
- 330 mm height-adjustable for floor mounting (RFB-FFB)
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

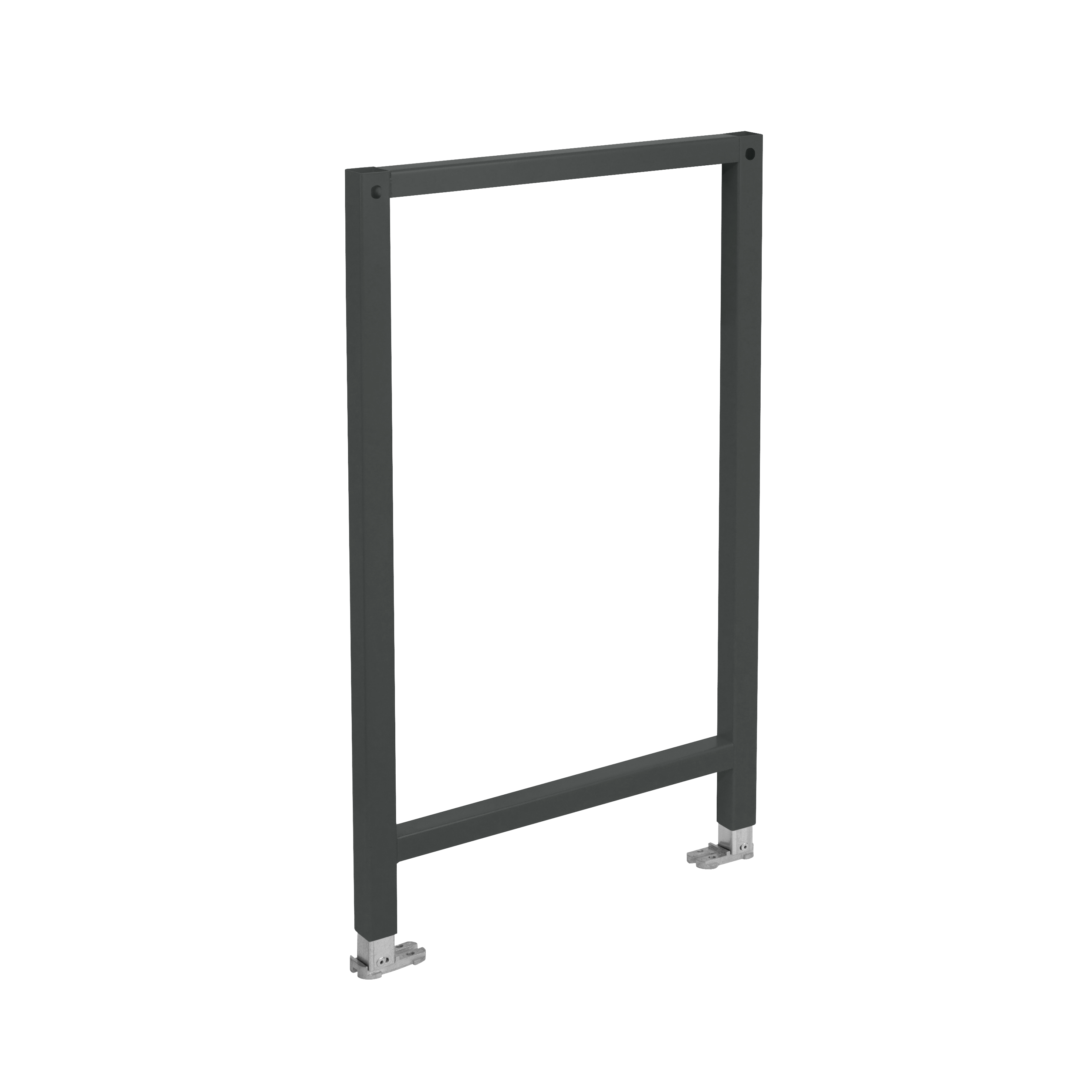

Element for bridging empty spaces
Art. no. 107-000000016
- 330 mm height-adjustable for floor mounting (RFB-FFB)

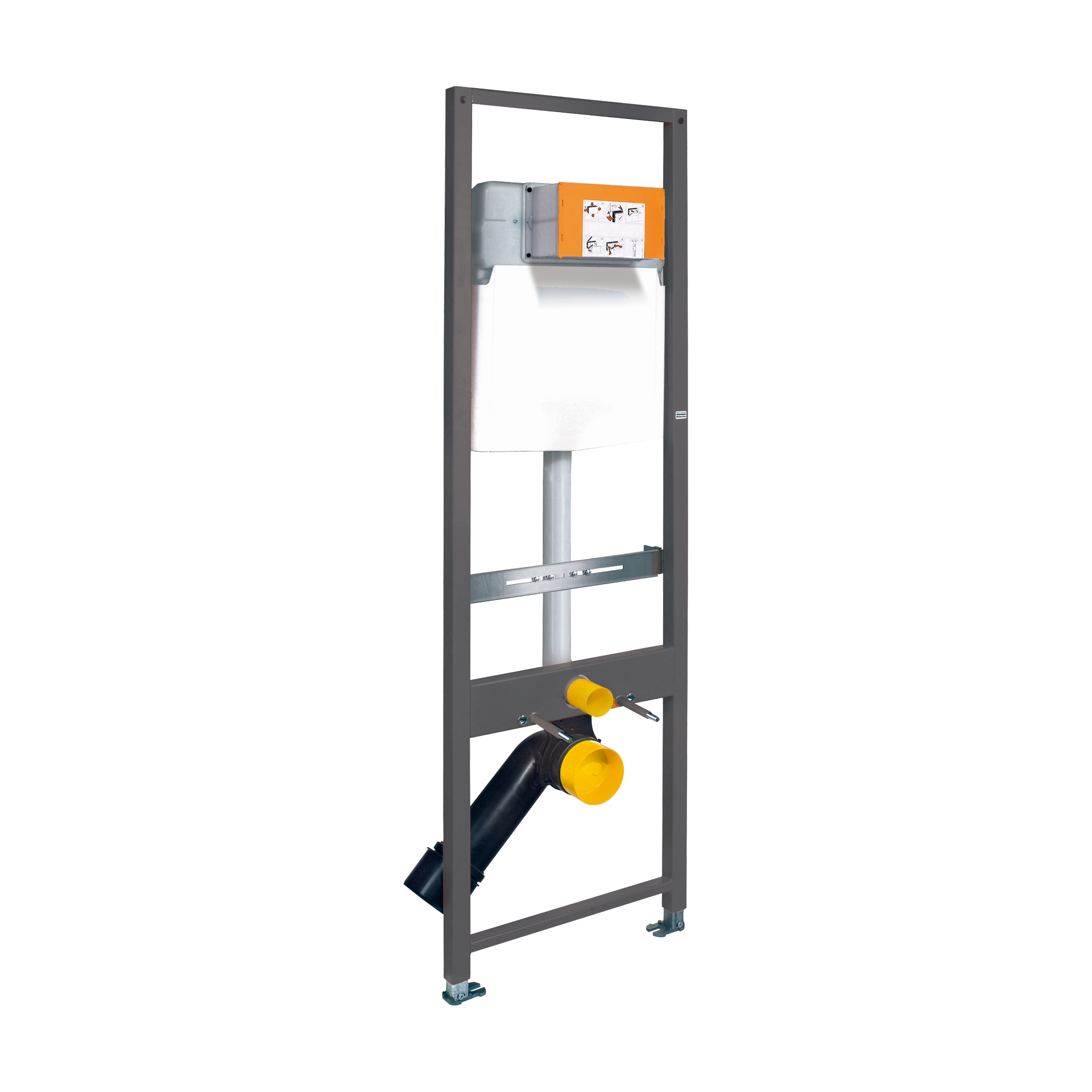

Faeces sink element with wall-mounted cistern SLK
Art. no. 107-000000014
- With mounting plate for wall discs/junction boxes
- 200 mm height-adjustable for floor mounting (RFB-FFB)
- Height:
- 1600 mm
- Width:
- 500 mm
- Depth:
- 135 mm

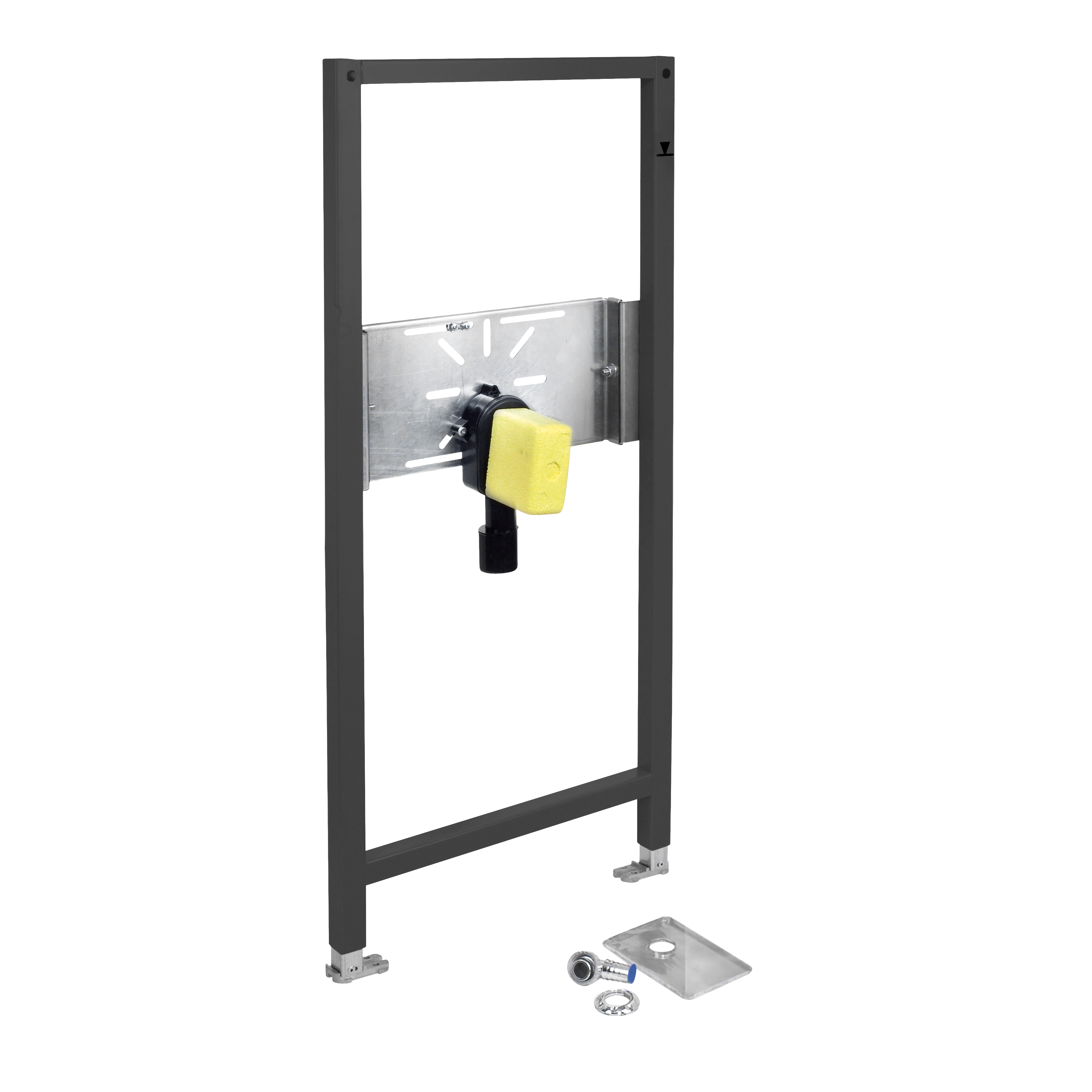

Element for washing machine
Art. no. 107-000000026
- 200 mm height-adjustable for floor mounting (RFB-FFB
- Height:
- 1120 mm
- Width:
- 500 mm
- Depth:
- 100 mm

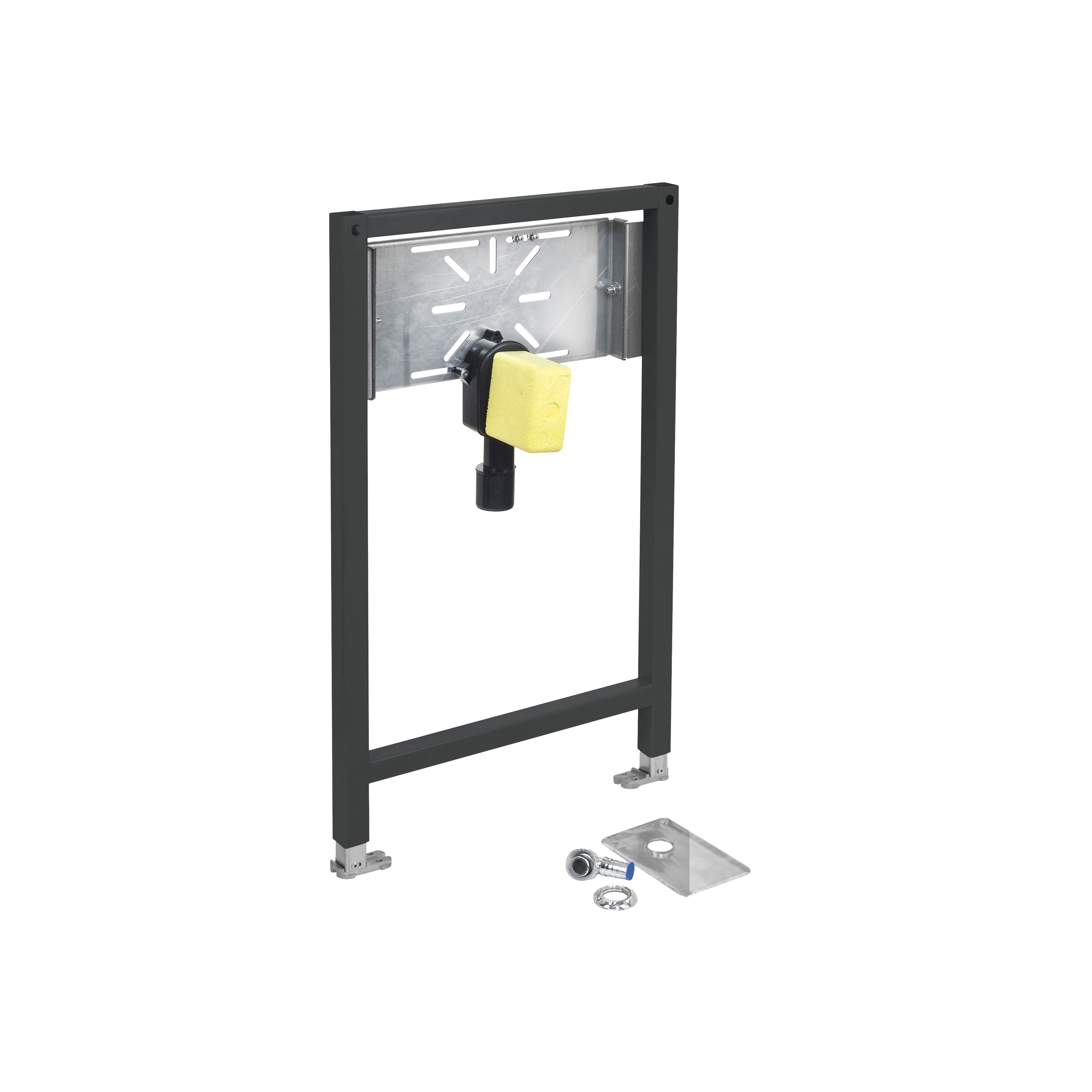

Element for washing machine
Art. no. 107-000000027
- 330 mm height-adjustable for floor mounting (RFB-FFB)
- Height:
- 820-890 mm
- Width:
- 500 mm
- Depth:
- 100 mm
