Product details
Use I Requirement
The IKP product range is manufactured from single-origin HDPE reclaim material. It is a robust dimensionally stable plastic pallet in Euro pallet size. It is characterised by its diverse variation options and thus, areas of application. Depending on the load capacity and safety requirements for transport, it can be fitted with up to 6 steel profiles and 12 anti-slip plugs.
Special features
- Made from single-origin HDPE reclaim material
- Dimensionally stable from -30°C to +60°C
- Particularly robust and economical
- Optionally with 22 mm outer edge
Options
- Steel profiles for a load capacity of up to 1,250 kg in high-bay racking
- Outer edge options: none, 7 mm anti-slip edge, 22 mm anti-slip edge
- Anti-slip plugs from top to bottom
Note:
hot imprinting of fonts, logos and numbers are possible on request depending on the quantity.
-

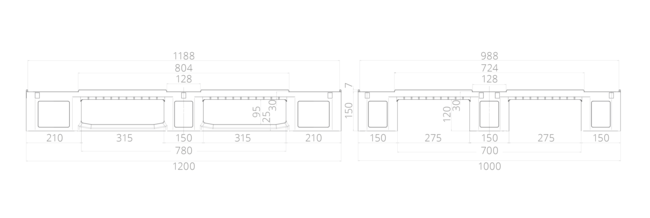

External dimensions1200 x 1000 x 150 mm
-
Weight17.5 kg
-
MaterialHDPE PE reclaim
-
Colour
-
Anti-slip edge7 mm
-
Skids3 not welded
-
Load capacity (static)5000 kg
-
Load capacity (dynamic)1500 kg
-
Load capacity (high bay)1250 kg
Container loading quantity
-
20' container140
-
40' container High Cube374
Truck loading quantity
-
Trailer494
-
Jumbo570
Advantages of the design and load capacity
A key advantage of the 1200 x 1000 plastic pallet is its flexible design and high load-bearing capacity. Thanks to the use of robust HDPE or PE reclaimed material, these pallets are not only resistant to moisture and chemicals, but also durable and stable. The surface, which is often non-slip, ensures the safe transport of goods. With a load capacity of up to five tonnes static and around one and a half tonnes dynamic, these pallets are ideally suited for use in demanding environments. Thanks to their low tare weight of 14 to 18.5 kilograms compared to conventional wooden pallets, they offer an excellent combination of lightness and strength. The exact dimensions enable efficient utilisation of space in the warehouse and during transport. Whether in the floor area or in high racks - the shape and load-bearing capacity of the pallet are optimally adapted to industrial requirements.
Use in logistics and options for individual requirements
The 1200 x 1000 plastic pallet is particularly popular in the logistics sector due to its standardised external dimensions and long service life. The runners enable easy handling with forklift trucks and pallet trucks, which increases efficiency in storage and transport. These pallets are produced according to strict quality standards, which ensures consistently high quality. Customers can request different versions, which can be selected depending on the application and specific requirements. In addition to the shape and height of the pallet, the load also plays a decisive role in choosing the right solution. On request, we will be happy to provide you with a customised offer that is tailored to your individual requirements.
Depending on the load capacity and safety requirements for transport, it is possible to integrate up to 6 steel profiles and 12 anti-slip stoppers. A 22 mm anti-slip edge can also be offered as an optional extra.
Worth knowing
Chemical resistance data sheet
Notes
All dimensions, weights and technical data listed are approximate values. They do not constitute a binding guarantee of certain properties or suitability for certain applications. Technical tolerances in accordance with DIN standards. Subject to alterations and errors.
The information is based on our current technical knowledge and experience. Due to the abundance of possible external influences in the application of the products, which are beyond our control, they do not exempt the user from carrying out his own tests and trials.
No legally binding assurance of certain properties or suitability for a specific purpose can be derived either expressly or implicitly.
Industrial property rights must be observed where applicable.
FAQ
A 1200x1000 plastic pallet is also known as an industrial pallet. The dimensions are in millimetres, so that we can speak exactly of 1.20 metres by one metre. In addition to the common and very lightweight plastic version, there are also variants made of wood and composite materials. A distinction must be made between the 1200 x 1000 plastic pallet and a slightly smaller Euro pallet. The latter is predominant in Europe, while the larger format is mainly used in the United Kingdom. An industrial pallet can be recognised by its five runners. A major advantage is that IBC containers, forklift trucks, lorries and production facilities are also adapted to the format, meaning that handling is easy internationally.
An interesting fact at the end: HDPE plastic has been used commercially since 1957 for cable insulation, in pipework systems and packaging materials.
A plastic pallet with the dimensions 1200x1000 is called an industrial pallet. Strictly speaking, of course, all the other formats are also used in industry, but this naming has become established. It refers solely to the surface area and not the material, which can vary. Every industrial pallet is a so-called "four-way pallet". This refers to the possibility of working from all four sides with a forklift truck or pallet truck and ensuring transport. Within Europe, industrial pallets are categorised by the European Pallet Association (EPAL) as type 2 and type 3 Euro pallets. The differences are based on the tare weight.
As an industrial pallet, a plastic pallet also has the advantage over its wooden or composite counterparts of its own low weight. A distinction must be made between the number of runners, which can be three or five, and the presence of an anti-slip edge. The weight in the 1200x1000 format varies and is at least 14 kilograms and up to 18.5 kilograms. The static load capacity is listed on the data sheet as five tonnes and dynamic loads of between one and one and a half tonnes are possible. In the high rack, the industrial pallets differ from each other and allow 400 to 1,250 kilograms. The dimensions of all models are precisely tailored to industrial applications to ensure maximum efficiency.
If you have any further questions about our 1200 x 1000 plastic pallet, our customer service team will be happy to advise you by phone or using our contact form.
